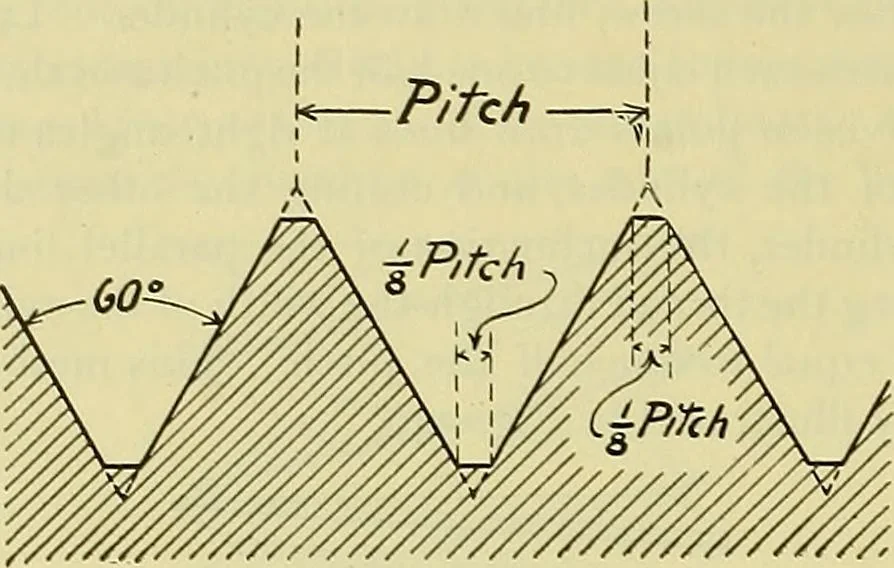

To Fig. 312. Fig. 345 shows a single V-threaded screw,draw the screw lay out the outlines of the cylinderof the bolt and upon one of its sides set off distanceseach equal to the pitch. Do the same on the otherside of the cylinder beginning at a point one-half thepitch from the end of the cylinder,… … FiQ. 343. Pitch i 1^- i Pitch >k • -k Pfcf*
