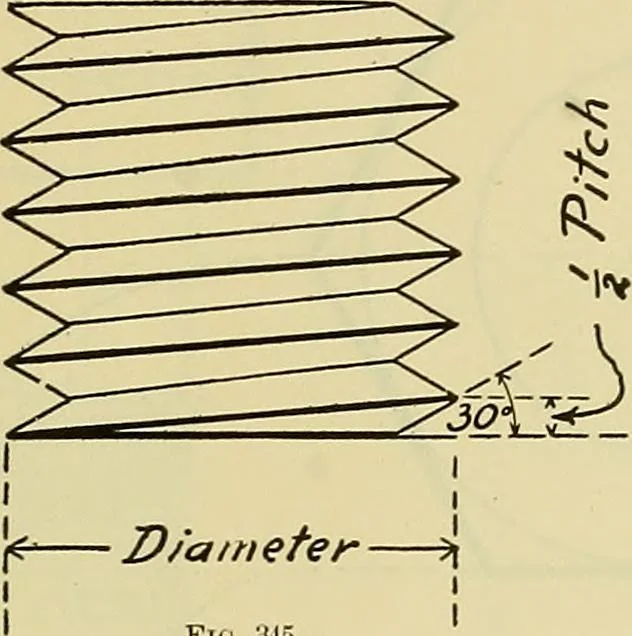

D. The same proportions are usedfor square heads and nuts. In all these formula; D expressesthe diameter of the bolt. Fig. 351 shows the conventionalmethod of representing a hexagonalnut for a 2 bolt, The height of thenut is equal to 2. The two viewsmay be drawn similar to the twoviews of a… … Fia. :i45.
