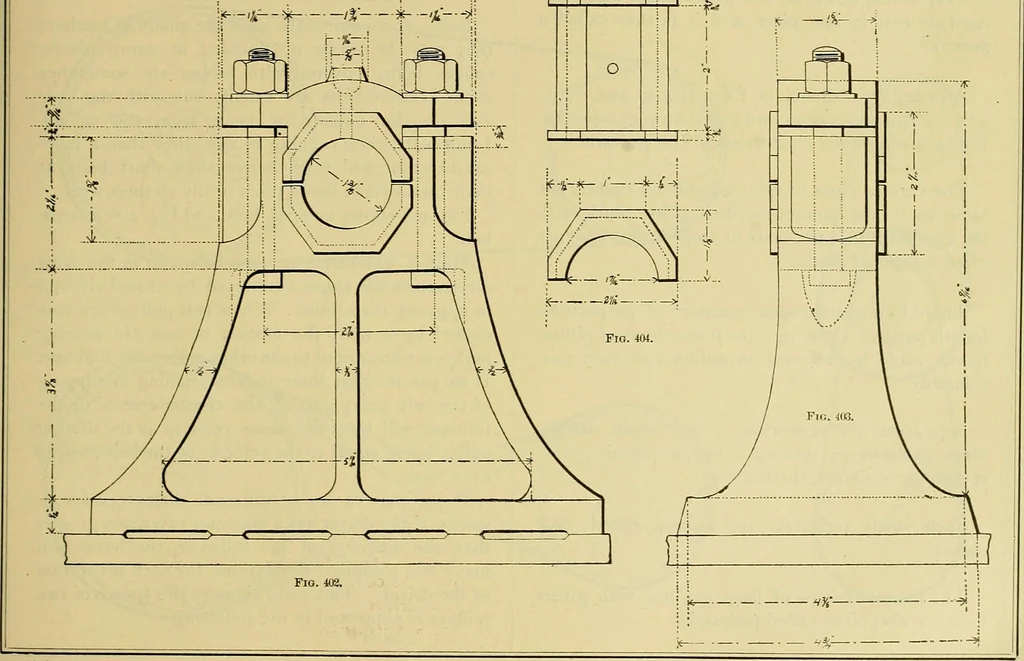

, the pillow-blockis placed on a stand-ard. This standard maybe cast separate fromthe pillow-block, andin this case both arefastened together bybolts. Note.—Brasses are made from different alloys which vary accord-ing to the judgment of the designer. Some engineers recommend thefollowing… … 266 ROGERS DRAWING AND DESIGN. Very often, however, the pillow-block and stan-dard are cast in one piece and it is then called apedestal. A pedestal is shown in Figs. 402 to 404. Fig.403 is a front elevation and 402 shows its top view.Fig. 404 represents a side view of the pedestal. The various…
