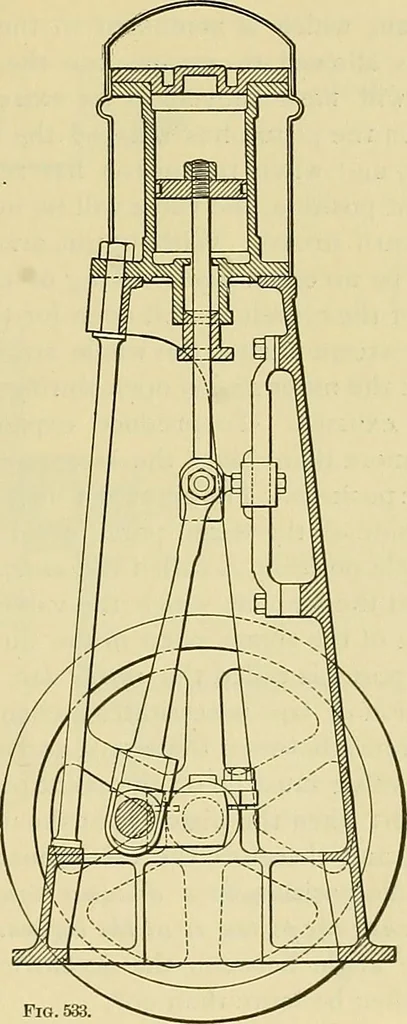

Fig. 532. … Fig. 533. 372 ROGERS DRAWING AND DESIGN. and the steam, which is contained to the right ofthe piston is allowed to escape into the exhaust.The valve will have moved to its extreme rightposition when the piston has reached the middle ofthe cylinder, and when the piston has reached itsextreme right…
