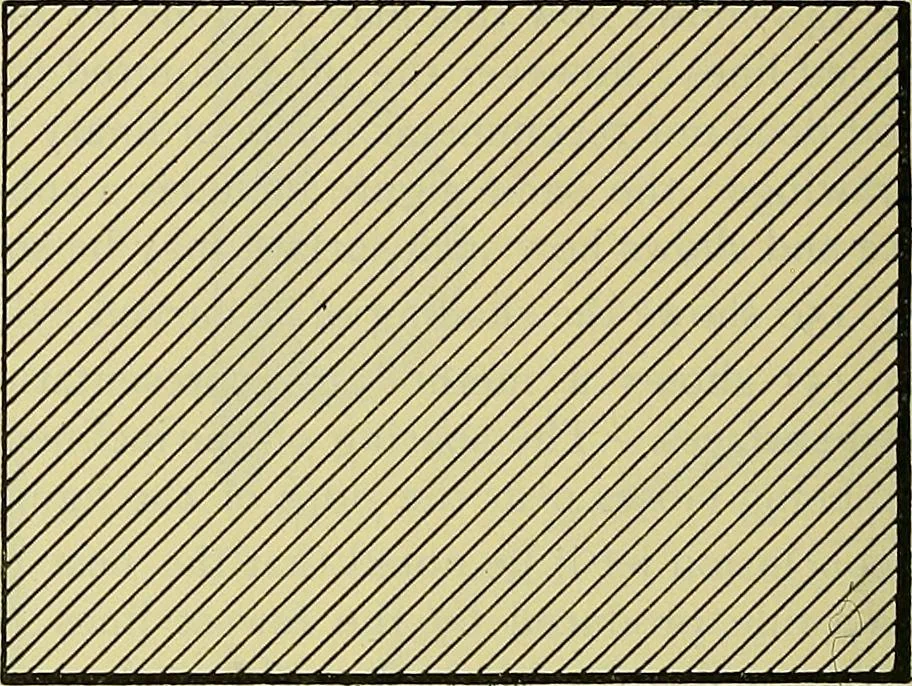

er makes thework of sectioning much harder ; the lines shouldnot be drawn first in pencil, but only in ink, as theneat appearance of the drawing depends largelyupon the uniformity of the lines in the section andthese lines are to be spaced by the eye only. Theprocess consists simply in ruling one… … Fig. 154.
