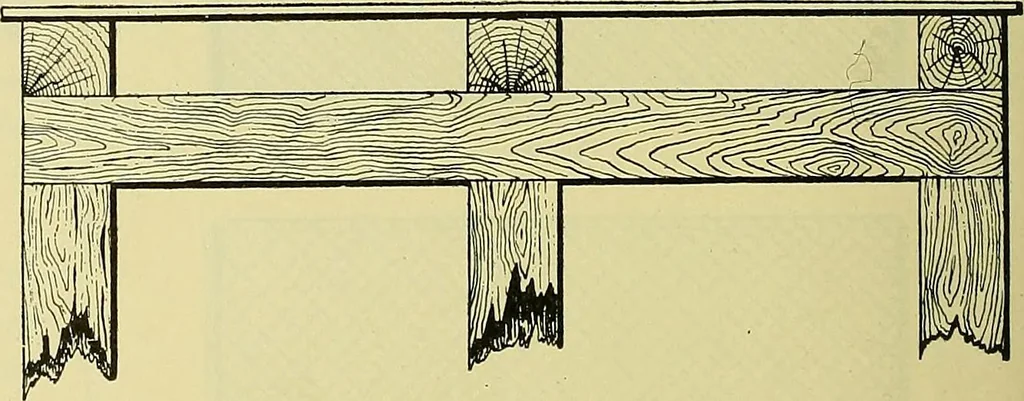

imes as far from the light lines asthe distance between them, as shown in Fig. 159. Wooden beams are sectioned by a series ofrines and radiating lines in imitation of the naturalappearance of a cross section of an oak tree. Fig. 160. A beam or board is represented by lines run-ning similarly to… … Fig. 160. usual section lines ; but as this requires consider-able work and produces an ill effect in the drawing,It is often better to fill in the whole sectional areawith solid black. In this case a white line must be left between theadjoining pieces ; this method is recommended onlyfor small…
