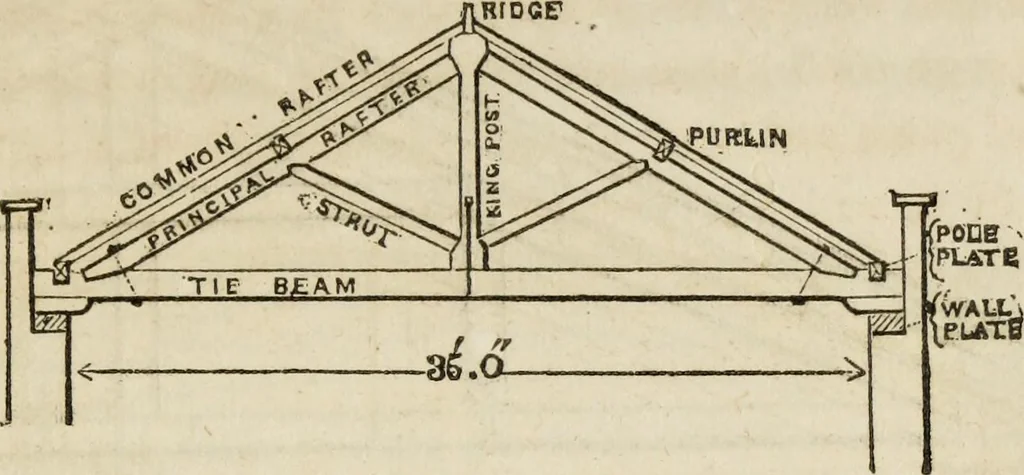

ART OF BUILDING. 65 Fig. 51. … mon rafters but on a ;polc jplate^ the tie beams resting eitheron a continuous plate, or on short templates of wood orstone. 111. Where the span is considerable, the tie beam is sup-ported at additional points by suspension pieces called queenposts (fig. 52), from the bottom of which spring…
