Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 112

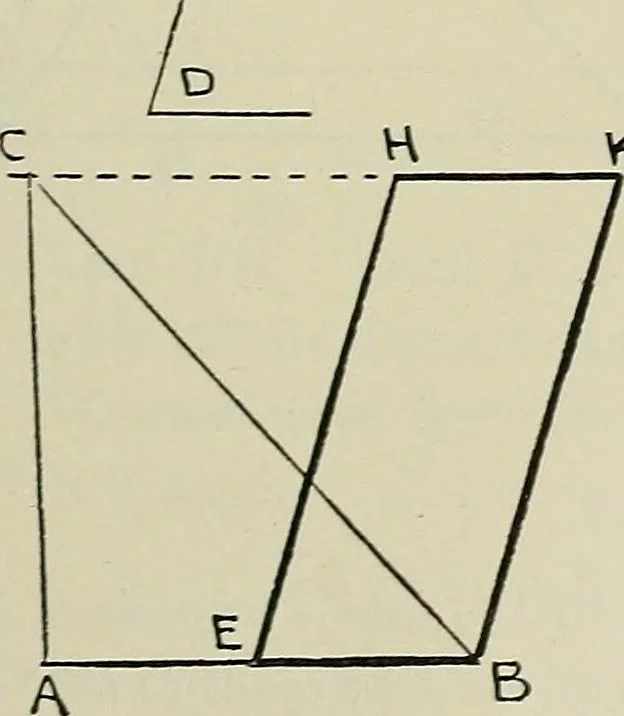

Fi?. 202. … Tm. 203. Peoblem 125. To construct a rhoniboid equcd inarea to a given triangle ABC,V^ and having one of its angles equcd to given angle D. Bisect the line AB in E (Prob.1). From point C draw the lineCK parallel to AB (Prob. 4).At E construct the angle BEHequal to the given angle D (Prob.12). From…
Geometrical drawing
