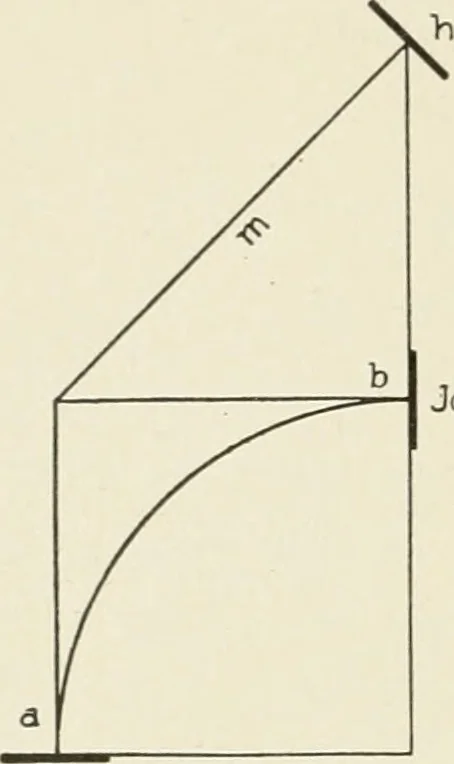

Fig. 85. Acute-Angle Plan. Joint b 1/ o a 1 Is 1 *5a: d n Joint Joimtx n J Diameter i vy i wlil 309 46 STAIR-BUILDING … Joint Joint Fig. 87. Illustrating Plane Inclined in One Direction Only. this case, of a square prism), the section being the assumed inclined plane whereon the wreath rests in its ascent from a to h. The joint at h, if made square to the tangent m, will be a true, square butt-joint; so also will be…
