Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 263

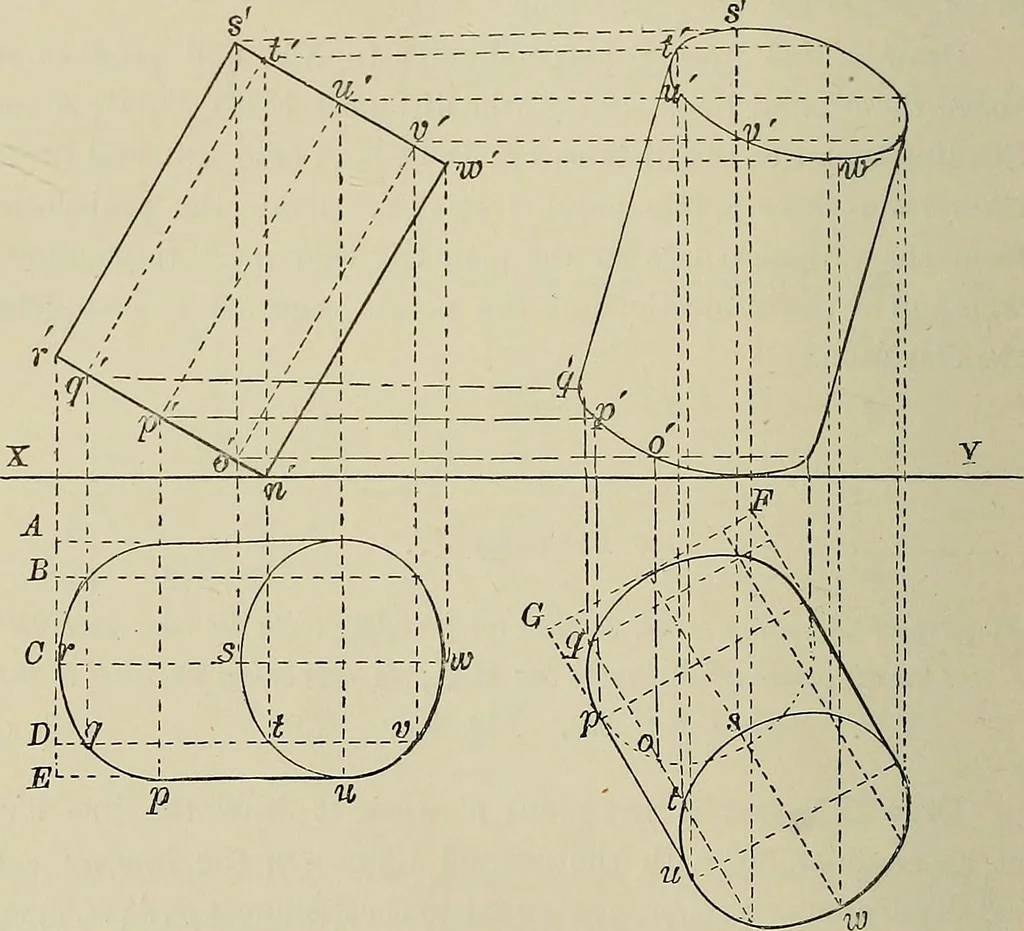

From each of these points draw linesparallel to XY. From the various points in the elevation dropprojectors till they meet these lines in the corresponding points,by connecting which we get the plan. R 242 SOLID GEOMETRY CHAP. XX Pkoblem 38. To project the same solid resting on its edge, xoitli its… … \ ^ 0 T 1 Fig. 49. Fig. 48. of 30° with XY. Complete the plan from Fig. 48. Draw pro-jectors from the plan till they meet lines drawn parallel to XYfrom the corresponding points in the elevation (Fig. 48). Thesegive the necessary projections for completing the elevation. CHAPTEE XXI SPHEEES, GEEAT…
