Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 293

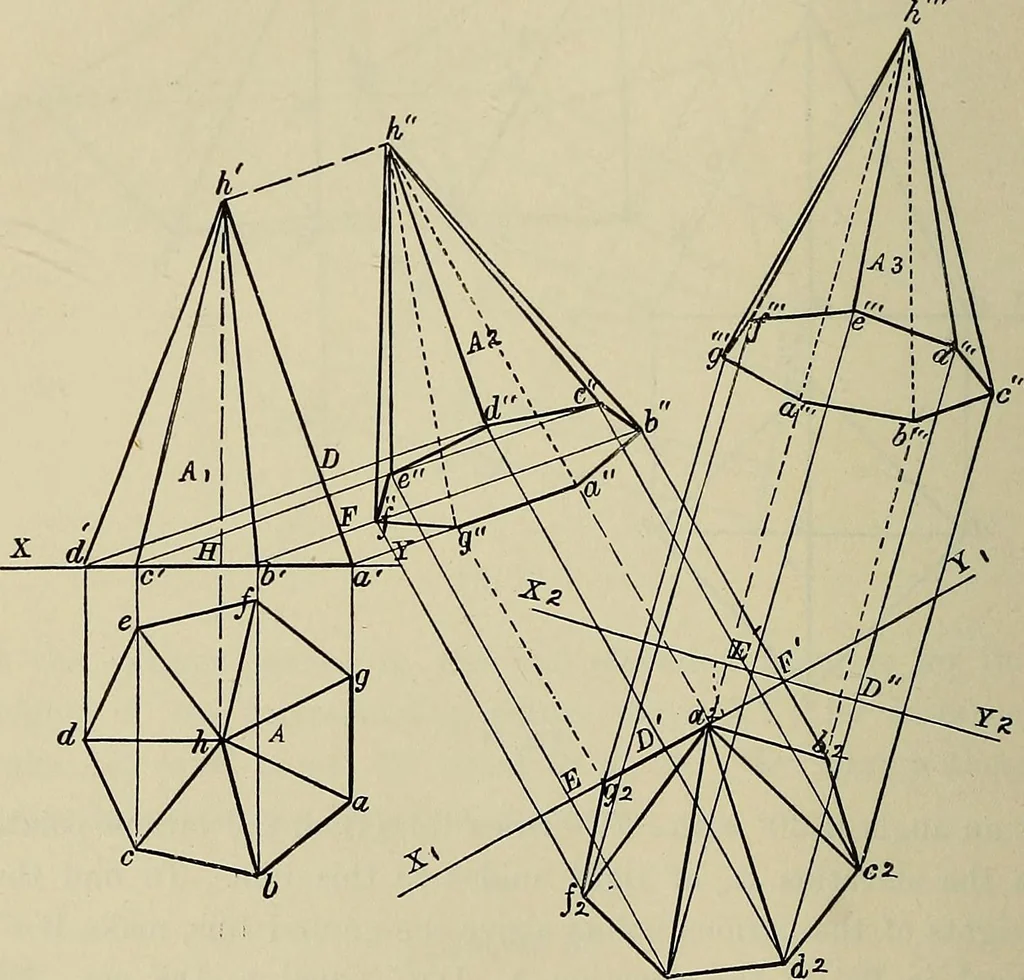

other projections as follows:— 1. A plan and elevation vnth one of the longer edges vertical,and the triangidar face containing this edge parallel to the V.P. 272 SOLID GEOMETRY 2. An elevation tvith the same edge still vertical, Imt tvith theface containing it inclined to the V.P. at an angle of… … Fig. 72. perpendicular to the line ah. Assume ah to be the level ofthe H.P., and make the heights of the various points in A^ aboveit equal to the distances of the corresponding points in the planA from XY ; for instance, make hh equal to Hh, Dd equal todd, etc. By joining these points we get the…
Geometrical drawing
