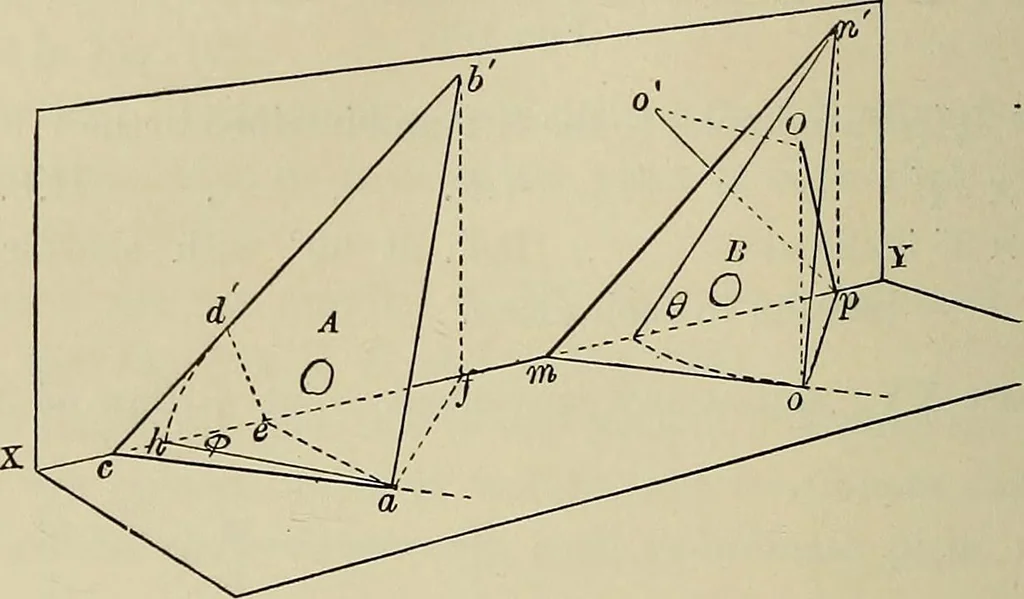

h it. From h draw hk perpendicular to XY; andfrom g as centre, with radius gk, draw an arc till it meets aperpendicular from g in I. From g draw a perpendicular till itmeets a horizontal line from h in m. Draw mV and lo, each3 long, parallel to XY^ Then mn will be the V.T., and ol theH.T. of C. 300… … Fig. 107. planes, as shown at A (Fig. 107). ca will be the H.T. and cbthe V.T. The inclination of a plane to the co-ordinate plane containingits trace is the angle between two lines perpendicular to thetrace, one in the co-ordinate plane and one in the plane itself. The line ca (Fig. 107) is the…
