Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 329

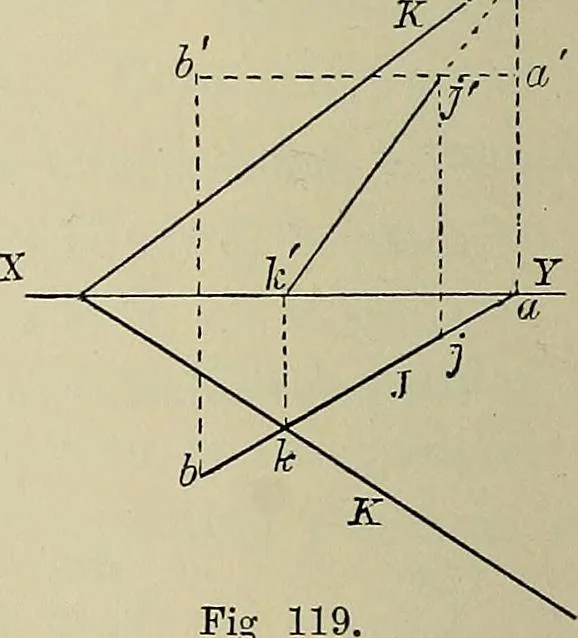

- ^ Fig. 118, … Peoblem 89. Project the intersection hetween tivo planes J and K: J to he3f X 2\, inclined at an angle o/30° to the V.P., and perpen-dicular to the H.P.; K to he an indefinite plane, inclinedat an angle of 55° to the H.P., aiid 45° to the V.P. ScaleI full size. Fig. 119. Draw XY. Find the V.T., K,…
Geometrical drawing
