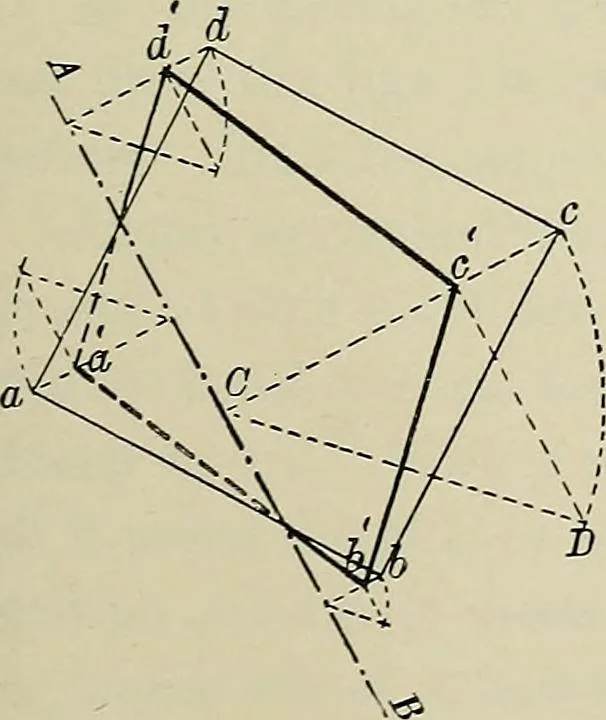

Ficr. 150. Pkoblem 121. To rotate a given sqiiare abed on anaxis AB till it forms an angleof 45° with the plane of theoriginal figure. Fig. 150. From each of the four points a,•fj b, c, and d draw perpendiculars tothe axis AB. With C as centre, and radius Cc,draw an arc. At C let Cd make 334 SOLID…
