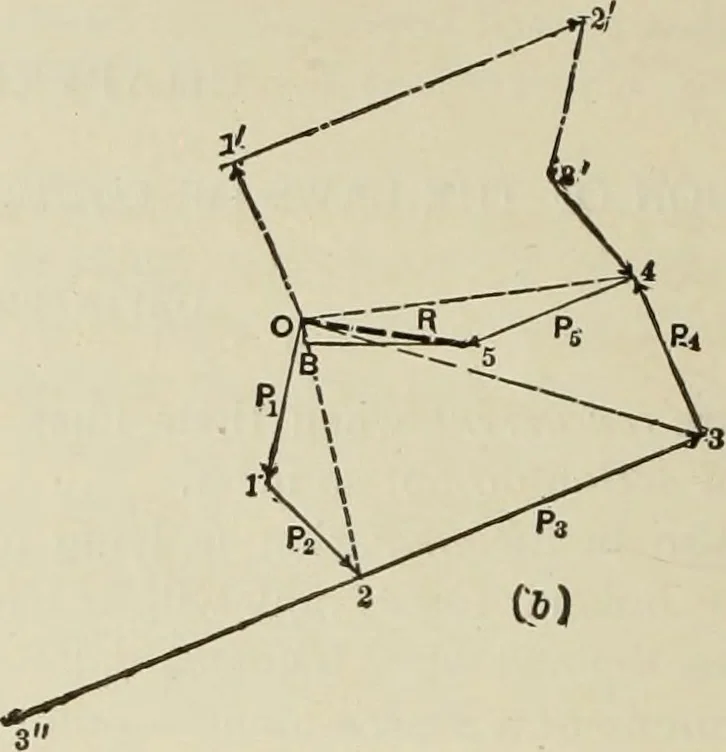

Fig. 13. force polygon also, for since 5(9 is equal and parallel to R, the resultant of the systemP^...P^, R is zero, and therefore we have equilibrium of translation. Equilibrium ofrotation is not in question, the forces being concurrent. Expressed graphically, the onlycondition necessary for…
