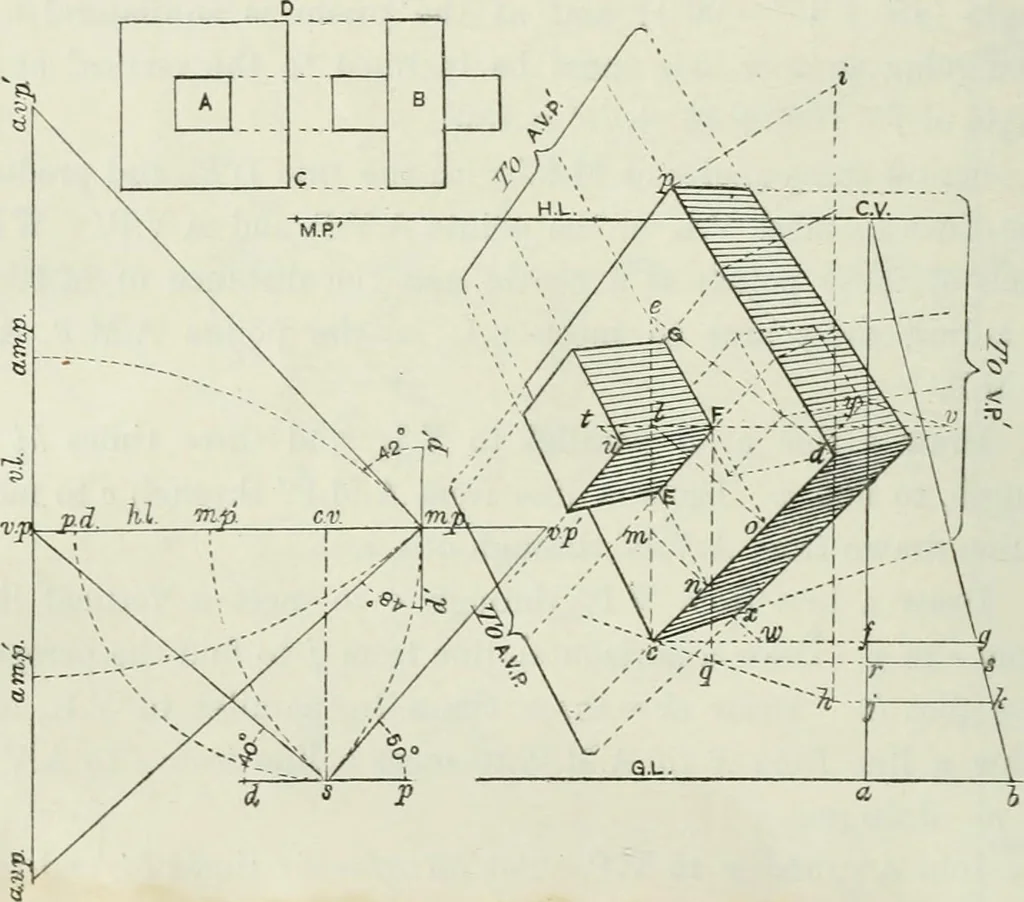

rism. 168 COMPLETE rERSIECTI\E COURSE PFvOBLE.M ()U Let A. and B he the front and side elevations of an object draicnto a scale of i = l. Drav: this object in perspective,with tliefront in a vertical plane, inclined, to the P.P„ atan angle of -^{i on the left; the side CD. to he inclinedto the G.P.… … Fig. 125 object are drawn to V.P.s on a Y.L, for vertical planes inclinedto the P.P. at an angle of 40 on the left, and to a V.P. for linesat right angles to these planes. X SOLIDS IX COMPLEX POSITIONS 169 First determine the working points, etc., by means of asupplementary drawing, to a scale of…
