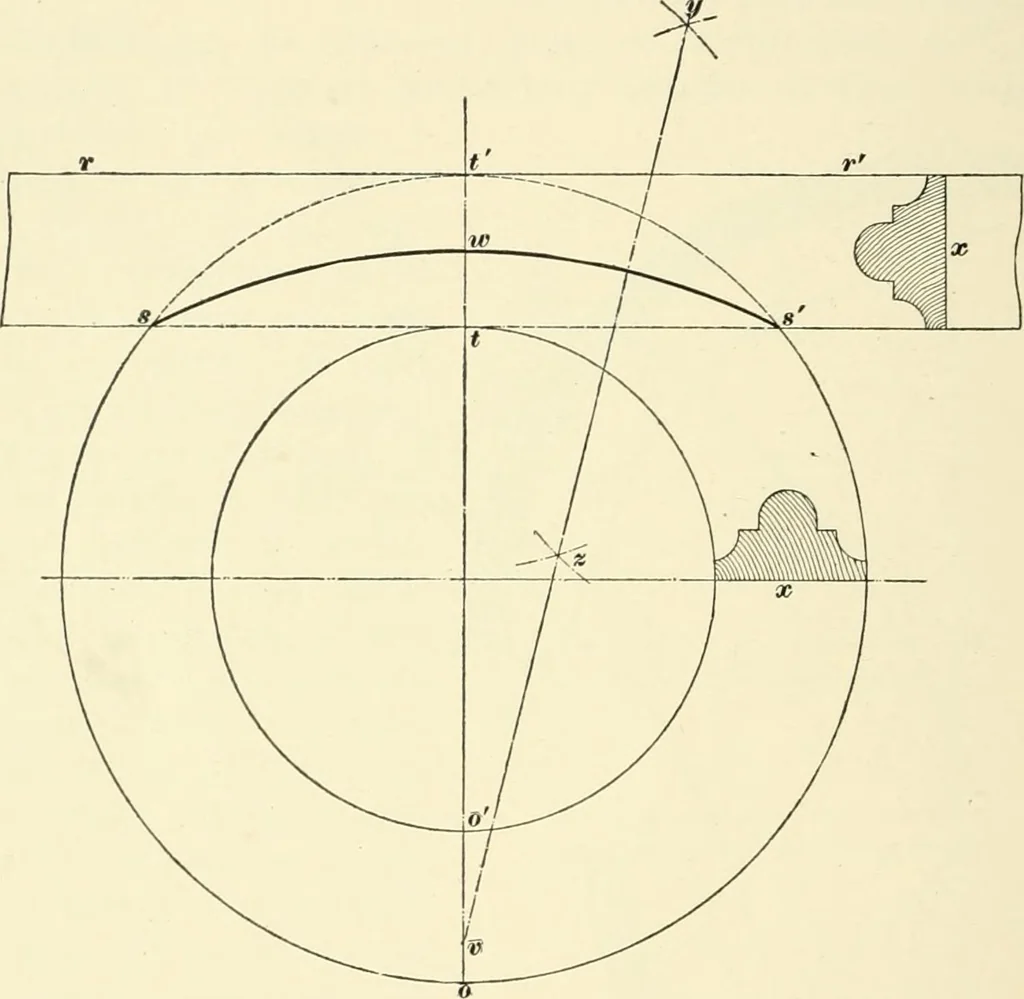

73 JOINERY. 10 83. To miter a straight and circular molding, the straightmolding to be tangent to the circular one: Let oo 11\ inFig. 51, be the circular molding, and x a cross-section of it;let ss rr be a straight molding, with the same cross-section … Fig. .51. X. Bisect 11 at 7C, and with s and xv as centers, describe theintersecting arcs through y and z\ join y and z and producethe line to intersect ot in v. Now from v as a center,describe the arc siv s\ which will be the miter line required. 84. To miter a straight and circular molding…
