The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 322

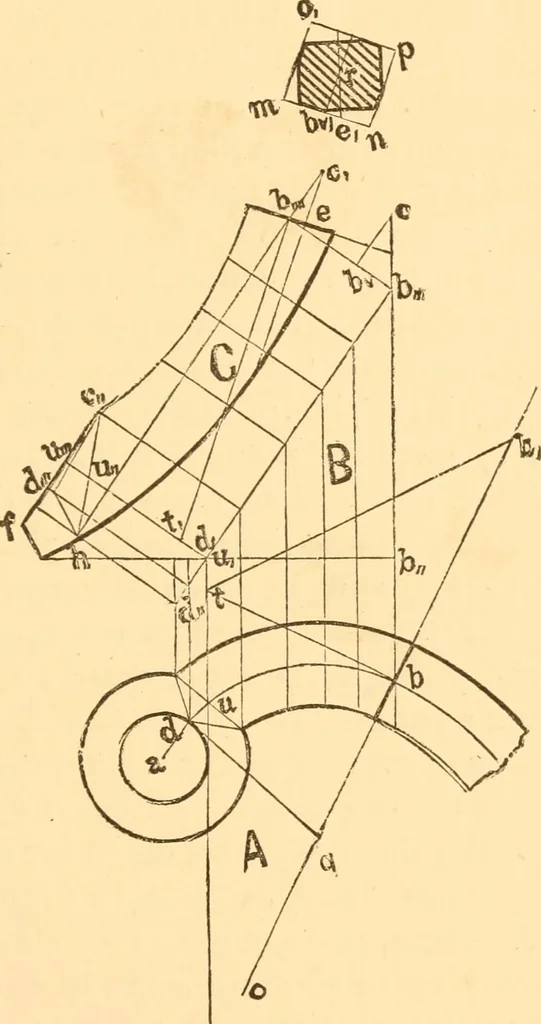

plane, the horizontal projection of FACE-MOULD FOR FIRST SECTION 283 which is b t. The butt-joint at b^.^^ is drawn square to thetangent b^^^^ t^. Parallel to the intersecting line / ti, drawordinates across the plane A from as many points as desir-able, and extend them to the rake-line 7i, b^^^;… … Fig. 159. obtain in the plane C for each point in the horizontal planeA its corresponding point in the plane C \ in each casetaking the distance to the point in the plane A from the lineJl b^i and applying it in the plane C from the rake-line ti^ b^^^.For the curves bend a flexible strip to…
Carpentry · Architecture · Building
