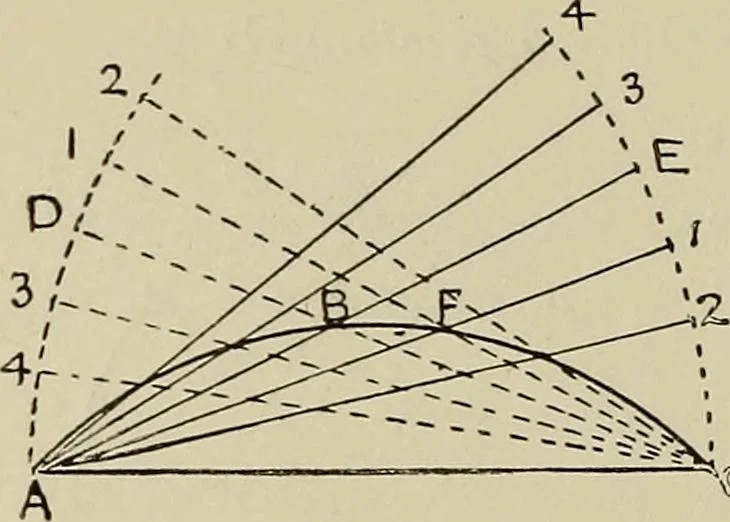

Problem 36. To draiv the arc of a circle through three given points A, B, C. the centre of the circle being inaccessible. With A and C as centres, and with a radius equal to AC, 3° PRACTICAL PLANE GEOMETRY … Fig. 7L draw iudeiiuite arcs. From the points A and C draw lines through B till they meet thearcs in D and E. From Dand E set off short equal dis-tances on the arcs above andbelow; join the divisions onarc AD to point C, and thedivisions on arc CE to point A.Where the lines from corre-sponding…
