Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 536

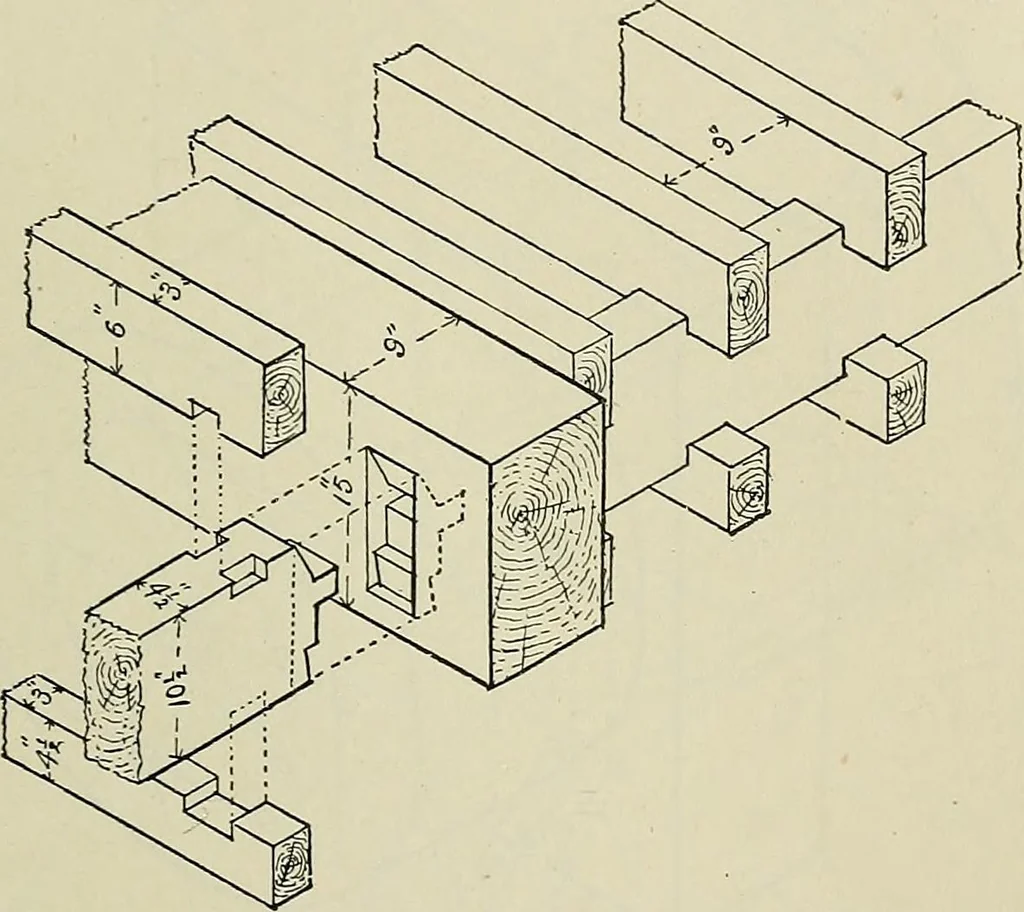

he object represented are not affected by ISOMETRIC PROJECTION 515 this means, bnt theoretically it represents a larger object thanis shown by direct measurement. The following illustrations in this chapter represent objectsdrawn in this manner:— Fig. 295 is an illustration of a double floor, drawn… … Fig. 295. the different timbers are framed together when in their j)roperposition, but also the detailed character of each joint. Fig. 296 represents a hollow cylinder passing through arectangular solid and projecting an equal length on each sideof it. This may be drawn to any scale. Draw the…
Geometrical drawing
