The elasticity and resistance of the materials of engineering (1915)
Burr, William H. (William Hubert), 1851-1934 · New York, John Wiley & Sons, inc.; [etc., etc.] · leaf 791

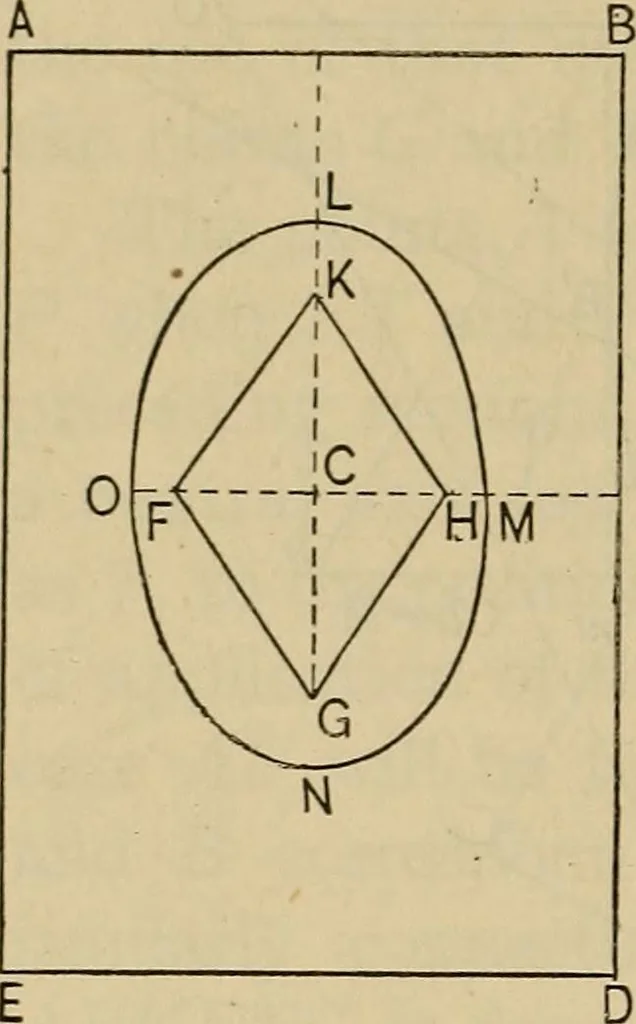

drawn tangentto the ellipse at M and N parallel toBD and ED will determine the axesof the ellipse, in fact already known,then dividing the square of each semi-axis by the normal distance of C fromBD and ED, respectively, the dis-tances CF and CK will be found, thusfixing the points F and K. The… … Fig. 3. General Observations. The preceding results show that bending combined withuniform stress induced by a load normal to the sectionwill prevent the neutral axis from passing through the centreof gravity of the cross-section. Furthermore, in this generalcase the neutral axis or neutral surface…
Strength of materials · Building materials
