Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 69

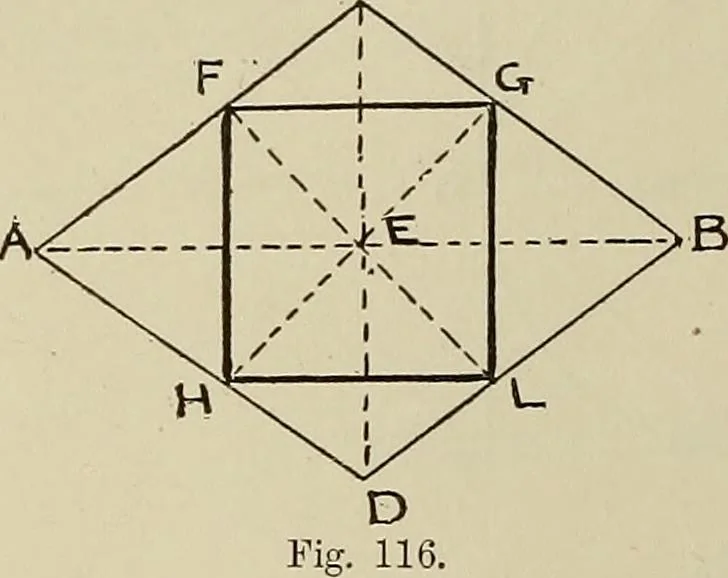

PRACTICAL PLANE GEOMETRY CHAP. … Peoblem 60. To inscribe a sqiiarc in a givenrhombus.Draw the two diagonalsAB and CD. Bisect theangles AEC, AED, and pro-duce the lines each way tillthey meet the sides of therhombus in the points F,G,H,L.Join FG-, GL, LH, and HF.FGHL is the inscribed square required, Peoblem 61,To inscribe a circle…
Geometrical drawing
