Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 56

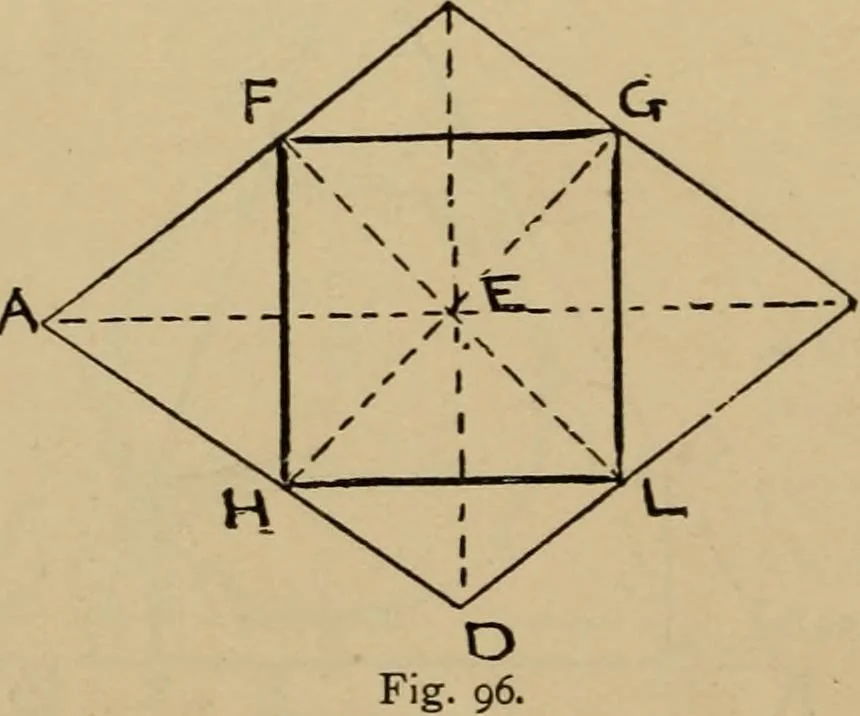

60. To inscribe a square ina given rhombus.Draw the two diagonalsAB and CD. Bisect theangles AEC, AED, and^ B produce the lines each waytill they meet the sides ofthe rhombus in the pointsF, G, H, L. Join FG, GL,LH,andHF. FGLH is theinscribed square required. INSCRIBED AND DESCRIBED FIGURES. 43 61.…
Geometrical drawing · Design · Drawing
