Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 69

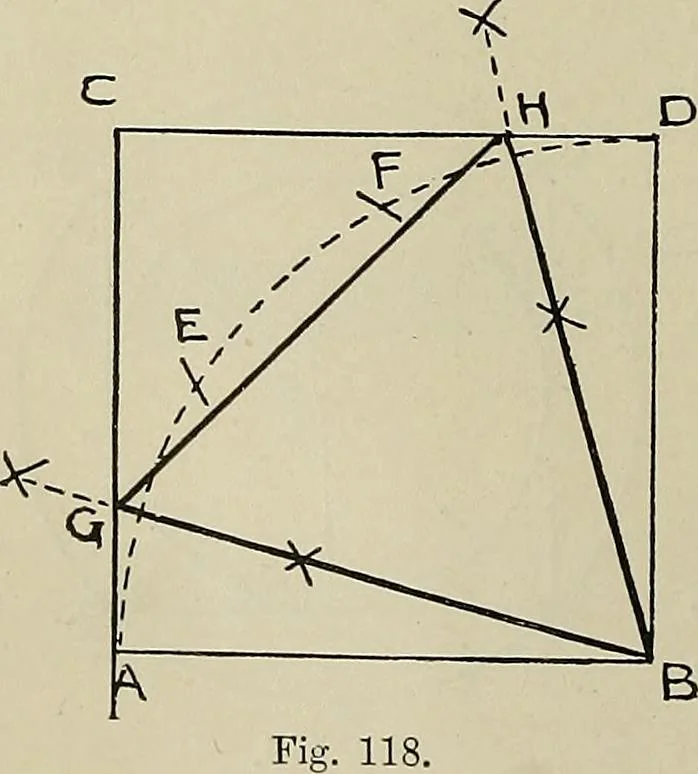

INSCRIBED AND DESCRIBED FIGURES 49 Peoblem 63. To inscribe an isosceles triangle in a given sqiiare ABCD, havinga hase equal to the given line E. Draw the diagonal AD. From A, along AD, set off AF
Geometrical drawing
Internet Archive · Wellesley College Library · Public Domain Mark 1.0. Free to use for anything.
