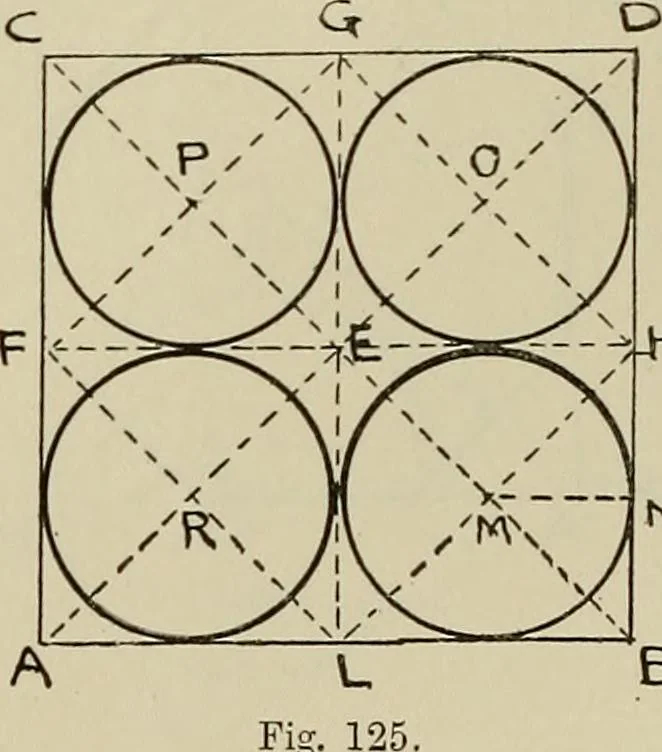

Fiff. 124. Problem 69. To inscribe four equal circles in a given sciuare ABCD ; each circleto touch two others, as ivell as tic-o sides of the given sqtiare. Draw the two diarronals AD and CB intersectinfr each other 52 PRACTICAL TLANE GEOMETRY … in the point E. Bisect the sides of the square in tlie points F, G, H, and L (Prob. 1). Draw the lines FH and GL. Join FG, GH, HL, and LF, which will give the points M, 0, P, and E. From point M draw the line [;^ MN parallel to AB. With M, 0, P, and E as centres, and N radius equal to MjST,…
