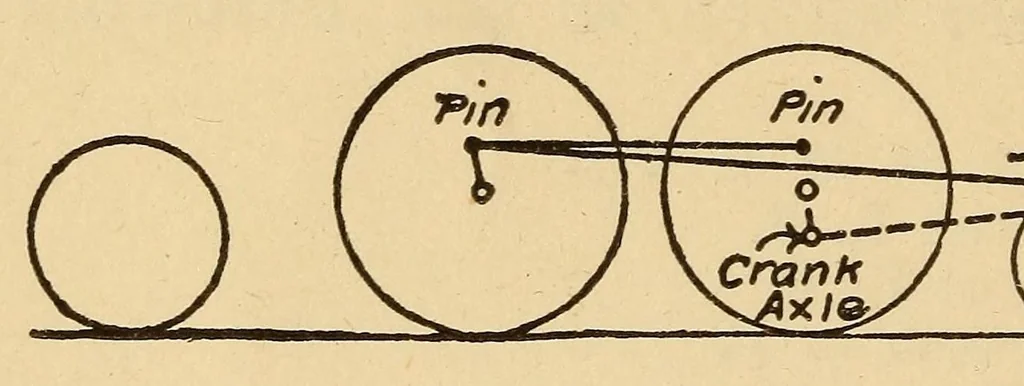

ENGINEERS' AND FIREMEN'S MANUAL. Vavc\Q\r). &inq)e> P\*ton Valve- ; LJR Outside Cole … de&iehn. Separate Links Geporate, s/ide> K*/rem . i £ i-F? Inside. The " Vauclain" type has high pressure cylin- ders inside and low pressure cylinders outside, all in the same horizontal plane in line with the smoke box, and all driving the front driving axle. A single piston valve worked from a…
