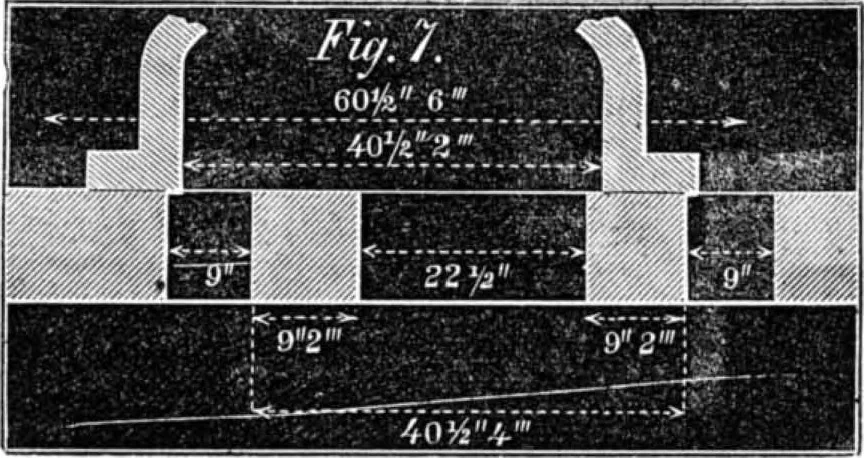

length of valve stroke, for a full open port,multiply the hightan inch. Supposing, as an example, a valve with steam ports 9 incheshigh, as shown in the diagram, Fig. 7, what would be therelative dimensions of the other elements of this valve 1 Theywould be : Steam ports 9 high. Thickness of bars 9… … English builders give an average inside lap of fay of aninch on either side. For low-pressure engines, working withfrom 2-| to 3 lbs. over pressure, f of an inch is given, while formarine engines, working with from 4-J to 5 lbs. over-pressure,the lap is from 1 to If inches. The rule given for lead…
