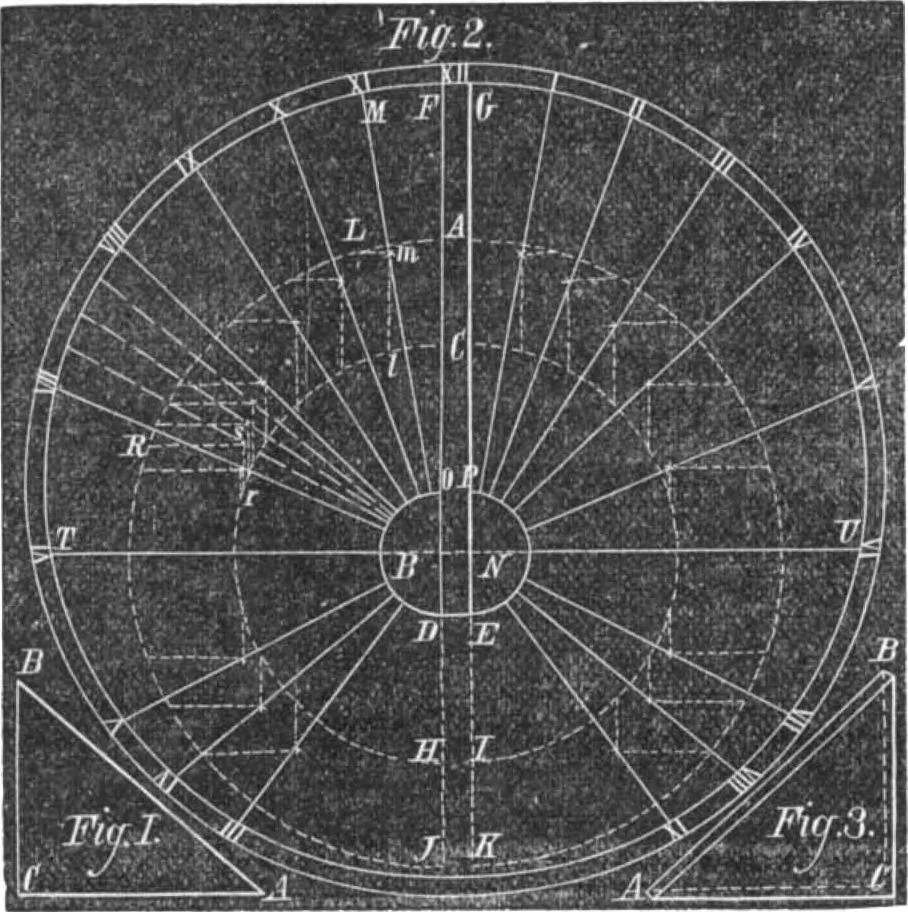

ur lines, whichare to be drawn through the center, B. The construc-tion of these quarter hour lines U shown between thehour lines of VII and VIII. In this way, all the morninghour lines can be constructed. The afternoon hour linesare found in a similar manner, except that they radiatefrom the… … earliest sunrise and latest sunset, in the latitude forwhich the dial is constructed. The style, Fig. 3, shouldbe made so as to have the angle B A C, equal to the lati-tude of the place. The base of the style should coverthe space B N F G. The dial should be carefully levelledand placed so that B N…
