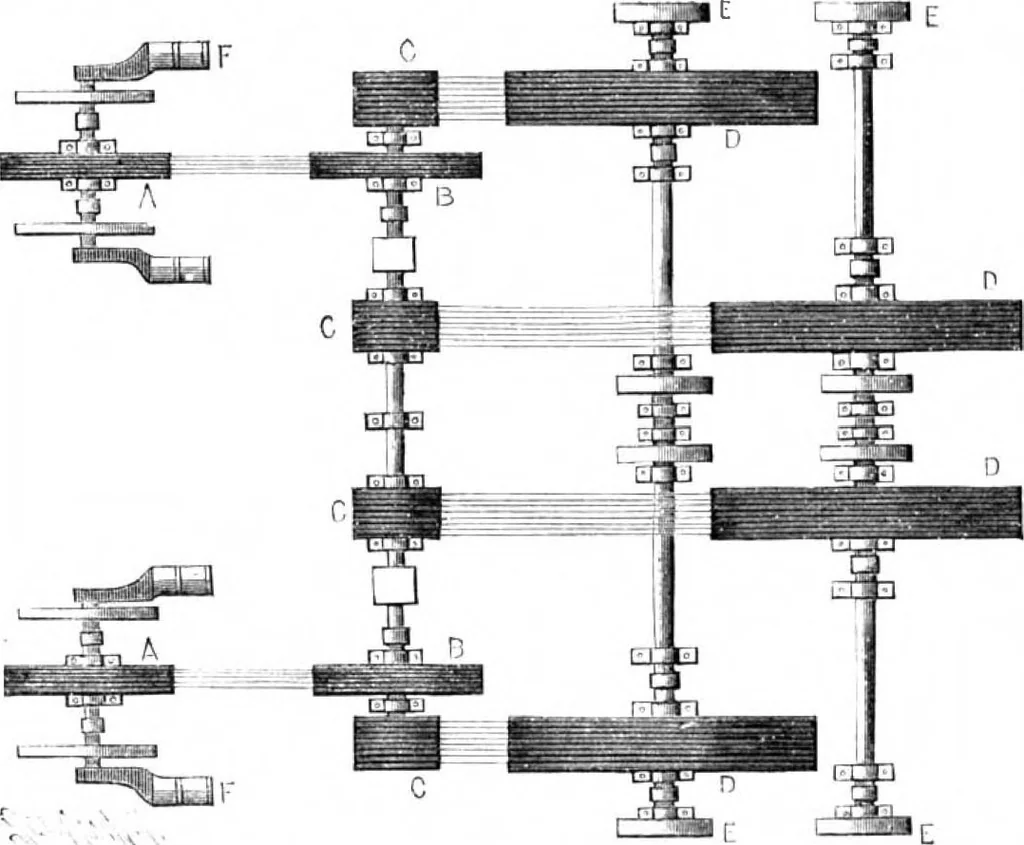

The arm ends are secured to the flanges on the segmental rim by through bolts, a portion of whichare turned, fitted into reamed holes. The centers, which present a very massive appear-ance, are accurately faced to receive the flanges of thearms, the connection being made by through bolts,half of… … A, B, C, D, Rope Pulleys from Engine, F, to Cable Drum, E.POWER TRANSMISSION BY EOPE PULLEYS TO CABLE DBTJMS. hub, while the supplemental wheel was turned bybevel gear connections. Other wheels of various sizes,ranging in diameter from 9 feet up to 22 feet, are beingmade by the company for the same…
