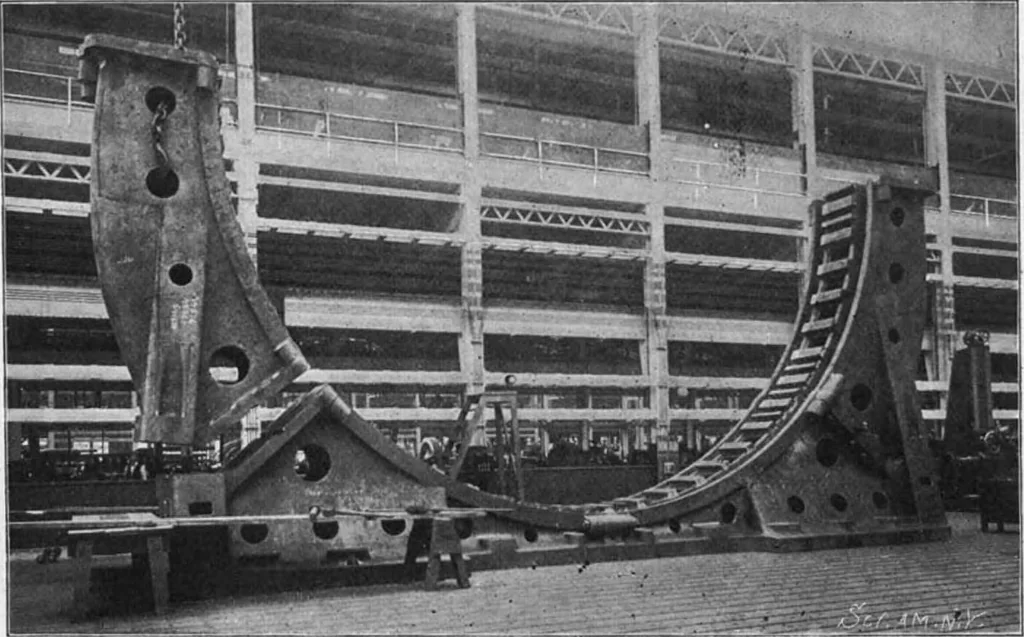

Massive Steel Hub Casting for the Field of the WestinghouseAlternator; Weight 25 Tons. wheel effect. As this field weighs 185 tons, and is 32feet in diameter, it will be seen that it is well cal-culated to do this. The common stroke of all thecylinders is 60 inches. The parts of the engine… … Fitting the Machined Pieces of the Yoke Together. while each bearing is 60 inches in length. There i s anaxial hole 16 inches in diameter entirely through theshaft. The crankpins measure 18 inches x 18 inches,and the crosshead-pins are 12 x 12 inches. The pistonrods are 8 inches in diameter; the…
