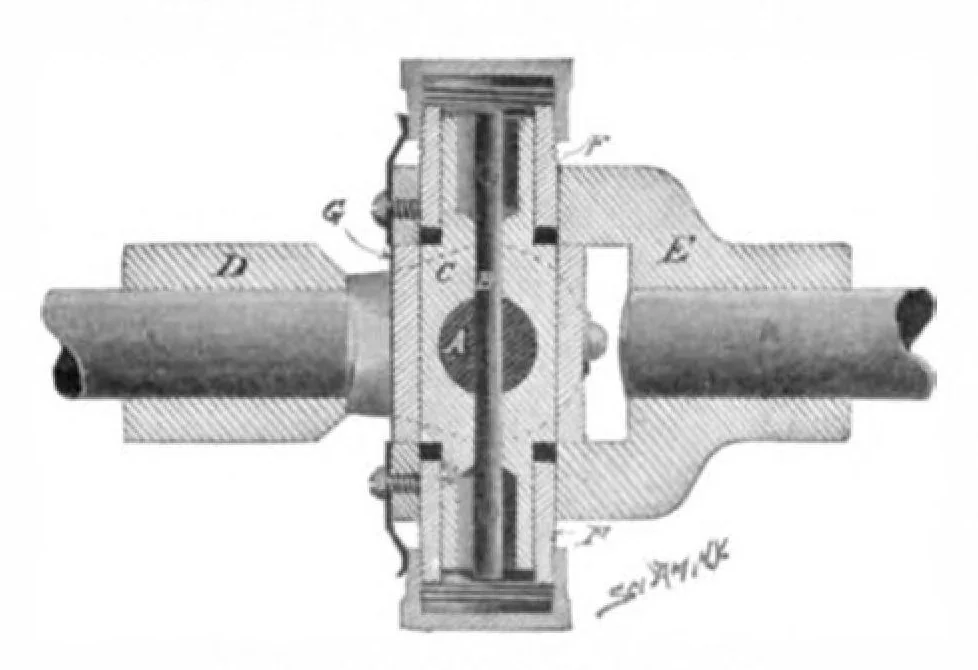

bical block, O, through which passes a shouldered pin, C. A hole is drilled transversely through this pin and the block to receive the pin, A. A small locking pin, B, passes lengthwise through the pin, G, and transversely through pin, A, serving to hold them together in proper relative position.… … THOMAS SAFETY RATCHET DEVICE FOR STOPPING A an automobile, which would do away with the compli- CAR FROM BACKING DOWN HILL. Fig-. 2.—SECTION THROUGH JOINT. cations and deficiencies of the differential gear. We illustrate herewith a simple clutch which appears to to a ring surrounded by an annular…
