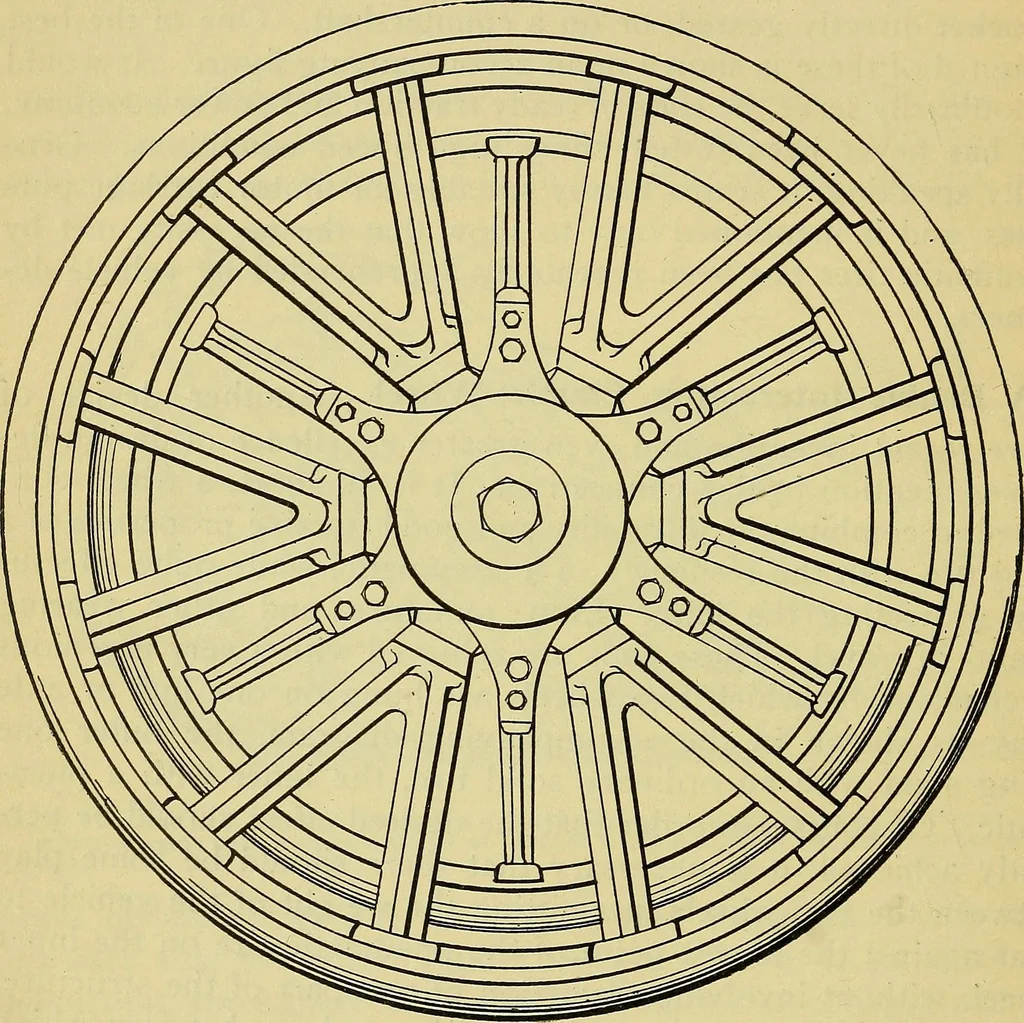

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 157 — rlv slotted, and also arranged for attachingspokes; two intermediate floating guide plates, with keys setupon reverse sides at right angles to each other, which guide 144 SELF-PROPELLED VEHICLES. plates, being set between each of the outer hub plates and thecentral hub, have their keys or splines… … Fig. 119.—The Double Interacting Wheel, constructed for heavy carriage use. As maybe seen, it consists of two distinct wheels hung on one axle and in the same plane.The larger has a solid rubber tire for the sake of good traction, the smaller has apneumatic for the needed resilient effect.…
