Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 181

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 181

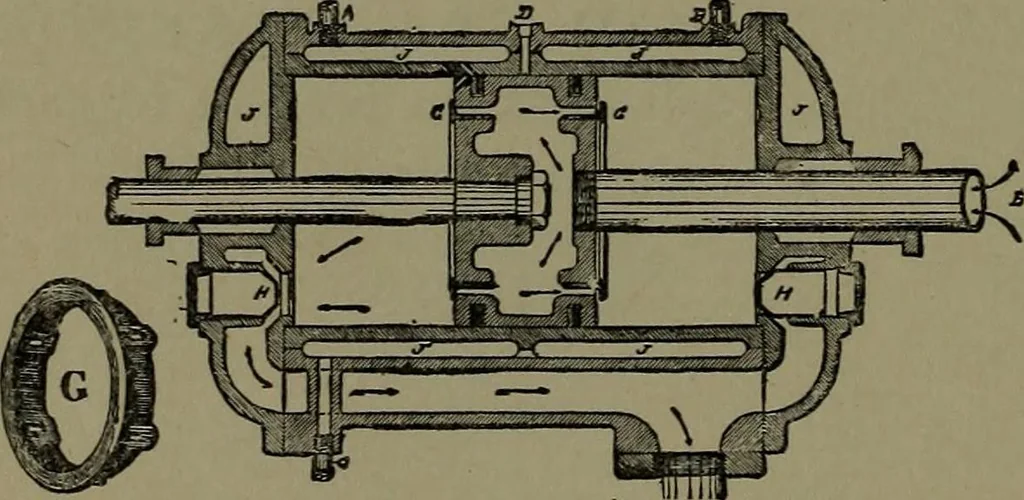

^ _ ^ 648. TOGGL&JOINT DUPLEX AIRCOMPRESSOR.—The crank moves thecommon joint of the long arms in a hori-zontal direction on a slide. The straighten-ing of the toggle greatly increases the powerof the pistons during the terminal part of,^ their stroke, when the air pressure is greatest … 649. AIR COMPRES-SOR CYLINDER, PIS-TON AND VALVES.—Pattern of the Ingersoll,Sergeant Drill Co. Takesits air through a hollow pis-ton rod at E to the interiorof the pistoUo The annular valves, G, G, open and close by theirmomentum. H, H, discharge valves closed by springs; J, J, waterjacket
