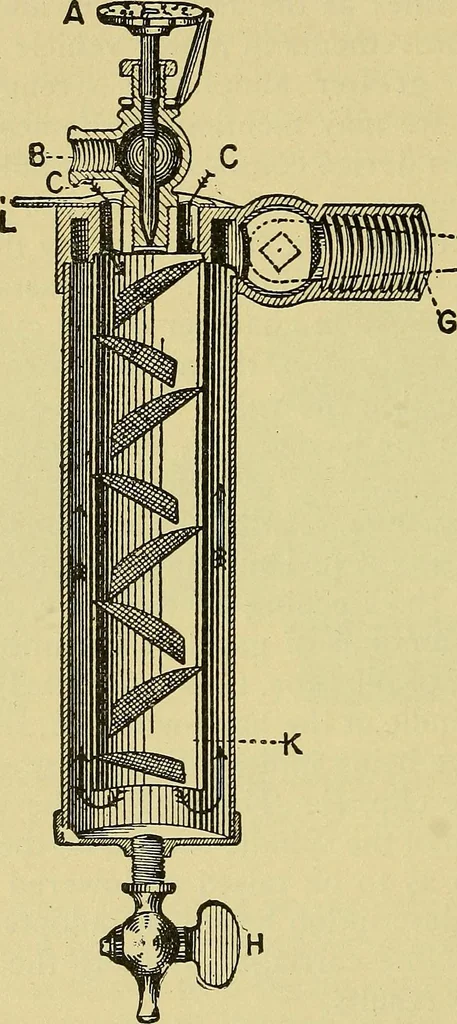

ort, B,leading into a simple globular chamber, through whichis fixed the spindle of an adjustable needle-valve, con-trolling the entrance to the cylindrical chamber, K, 256 SELF-PROPELLED VEHICLES, within which are fixed, at a slight incline, eight semi-circular pieces of wire-gauze. The gasoline,… … —<~ ^ v~> Fig. 175.—The Auto Carburetter. A, wheel controlling needle valve; B, gasolineinlet; C, C, air inlets; E, throttle lever; O, pipe to cylinder; H, drip cock; K, innercylinder containing segments of wire gauze; L, valve controlling air inlets. the cylinder, becomes thoroughly charged…
