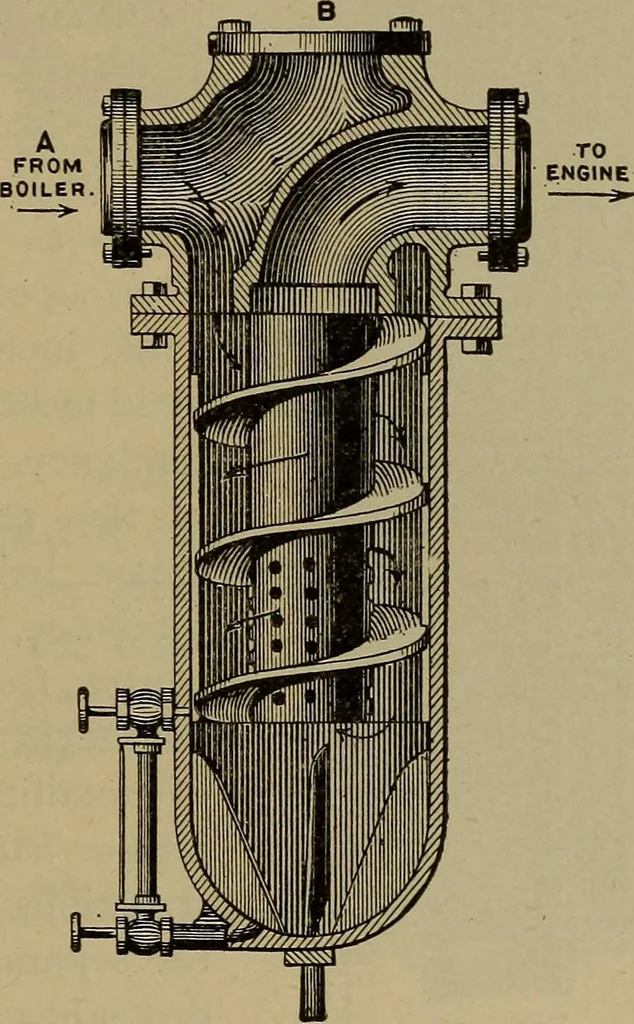

to be commended). Many traps instead of using afloat are operated by differences of expansion of one or twometals in steam and water. PIPING POR THE ENGINE AND ITS ATTACHMENTS. 359 The third method is to introduce a receiver or catch-water tank in the pipe close to the engine into which all… … Fig. 305. top of which the steam-pipe enters and passes down part way.The water which is carried by the steam falls to the bottomby its inertia or by gravity, and will there be taken care ofeither by a drip-pipe or by a trap. The steam going to theengine leaves the receiver from a point near the…
