Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 133

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 133

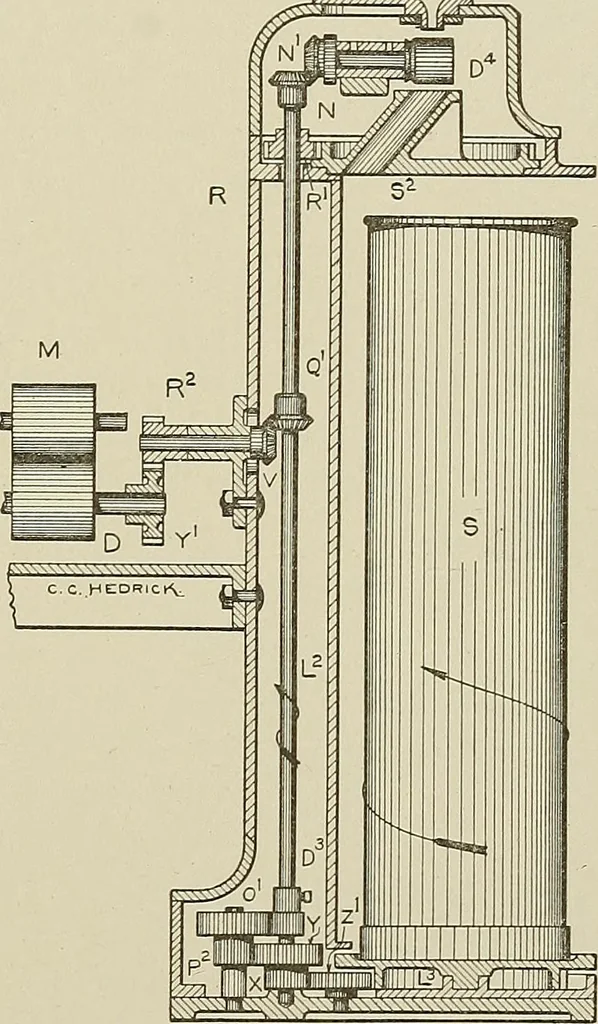

table, by which it is re-volved slowly in the oppo-site direction from thecoiler gear and just fastenough so that the coilsshall not overlap andcrowd each other. On the under side of the turn-table is a gear, driven from theupright shaft, L2, by the gears D3, 0\ P2, Y, X and Zi. Oiand P2 are… … Fig. 62. Vertical section of coiler. IM 82 COTTON SPINNING. Fig. 64 is a plan of the coiler top. The trumpet, C*, is madein the form of a large, flat plate which covers almost the whole of tlie top. When it becomes necessary tooil the calender roll bearings, it can bedone easily by pushing the…

Textile fabrics · Textile industry

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
