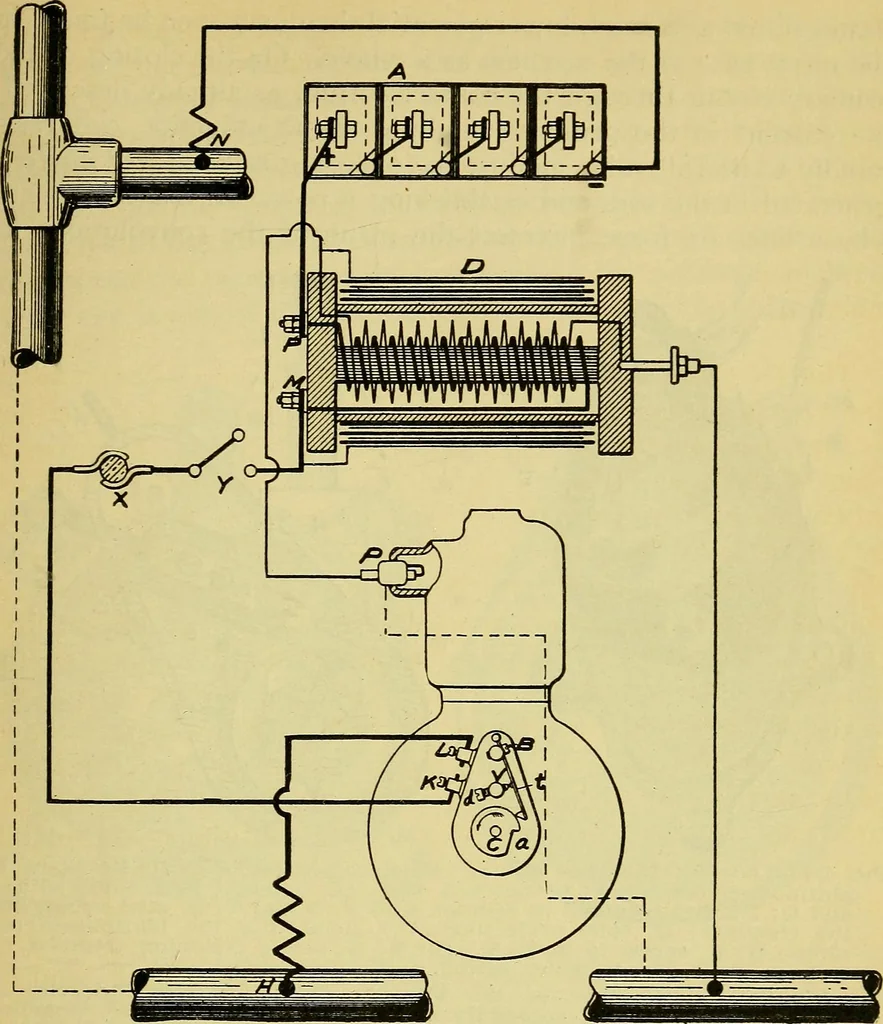

e lower binding post with the positive pole ofthe battery, as already explained. By this means, the circuitbeing periodically broken, a powerful high-tension current isproduced in the secondary winding of the induction coil, oneterminal of which is connected with the insulated portion of… … Fig. 193.—Diagram of the De Dion Jump-Spark Ignition Circuit. A is abattery of four cells, one pole of which is connected, as shown, to thetubular frame of the carriage at the point, N, the circuit being thuscompleted through the steel frame work to binding post, L, on thecircuit breaker; thus, the…
