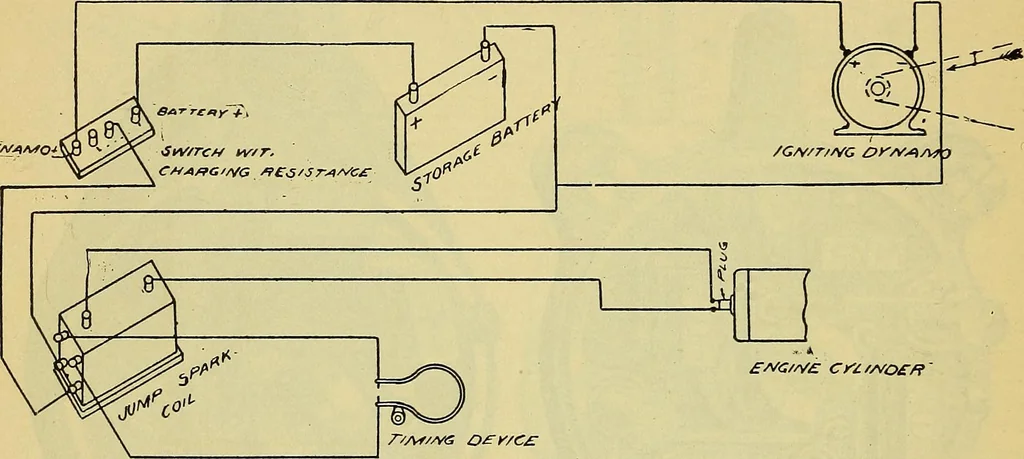

t that its flow is in the re-verse direction to that of the original self-induced current. Thiseffect is produced with great rapidity, and is a potent factor inrendering the De Dion system one of the simplest by which ahigh-tension current may be generated for ignition purposes.Among the objections… … £SSG//V£ CrZ//VO£/?~ 7~/A<r/s/G o^r/ez Fig. 198.—Ignition Circuit, containing a Dynamo Generator and StorageBattery. Both terminals of the secondary winding of the induction coilhave visible leads to the sparking plug. An adjustable vibrator on thecoil enables the timing of the spark. As in Fig.…
