Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 342

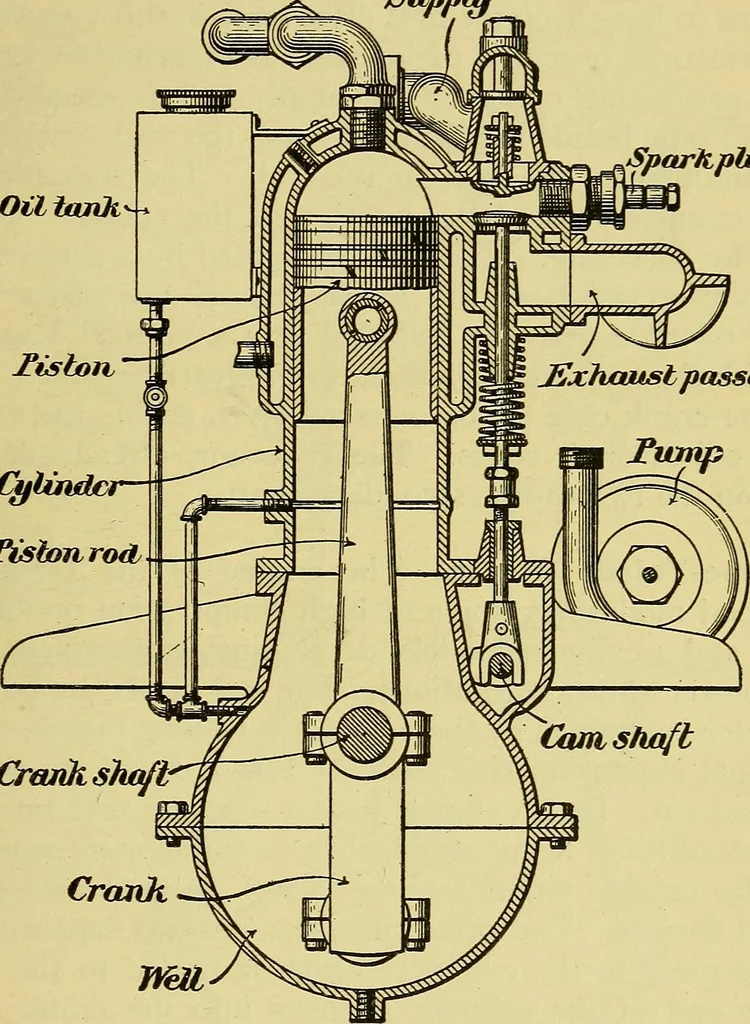

iece, consisting virtually of two double-throw GASOLINE MOTOR DEVELOPMENT. 329 parts, the cranks in each being set at 1800. The inlet valves areoperated by suction, and the exhaust from cams rotated by a two-to-one reduction from the main shaft. A third parallel shaft,carrying the sparking dynamo… … CytintlCijPisionrotl Crankshaft Crank Fig. 244.—Section of One-cylinder of Locomobile Four-cylinder GasolineEngine. may be supplied by gravity at any time. The ignition circuit issupplied at starting by a battery of two 40-ampere-hour storagecells, which are automatically cut out when the dynamo…
Automobiles
Internet Archive · Boston College Libraries · Public Domain Mark 1.0. Free to use for anything.
