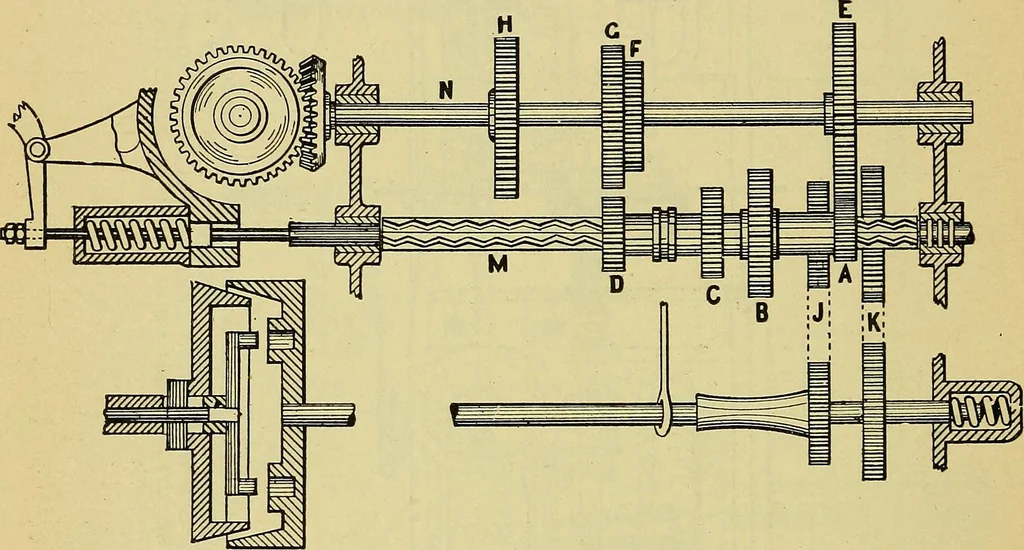

356 SELF-PROPELLED VEHICLES. speed at a regularly increasing ratio; the meshing of B2 and C2,giving the second speed forward, and the other gears the nexttwo increasing speeds. Similarly, also, i,n the act of shifting thesleeve from the extreme left position, when gear, B4, is meshedwith gear, C4,… … Fig. 268.—Sketch of the Improved Panhard-Levassor Transmission andClutch. Here, M is the square portion of the clutch shaft, and N thedriving, or top, shaft, carrying a bevel pinion meshing with anothersingle bevel on the transverse jack shaft. A, B, C, D, on the sleevemesh with E, F, G, H, on N. J…
