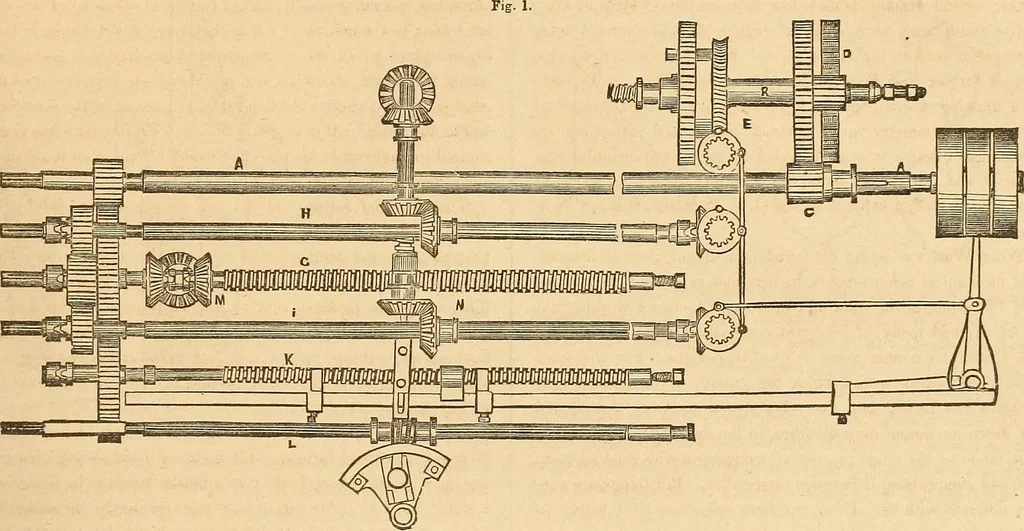

nding to the pitchof the guide-screw; l, grooved shaft, in connection with the dif BOOK OF INDUSTRIAL DESIGN. 1T5 ferential or barrelling motion, which is attached to the verticalslide, and consists of a segmental screw-wheel, embracing a mo-tion of about 60°, gearing with a tangent-screw on the… … Fig. 2. bearings of the screw, which slide in dovetails, and consequentlythe vertical stide, being thus affected by the eccentricity of thecrank-pin. The shafts, a, h, and i, and screws, g and k, are con-nected by a system of wheels, the arrangement of which is clearlyshown in the end view, fig. 2…
