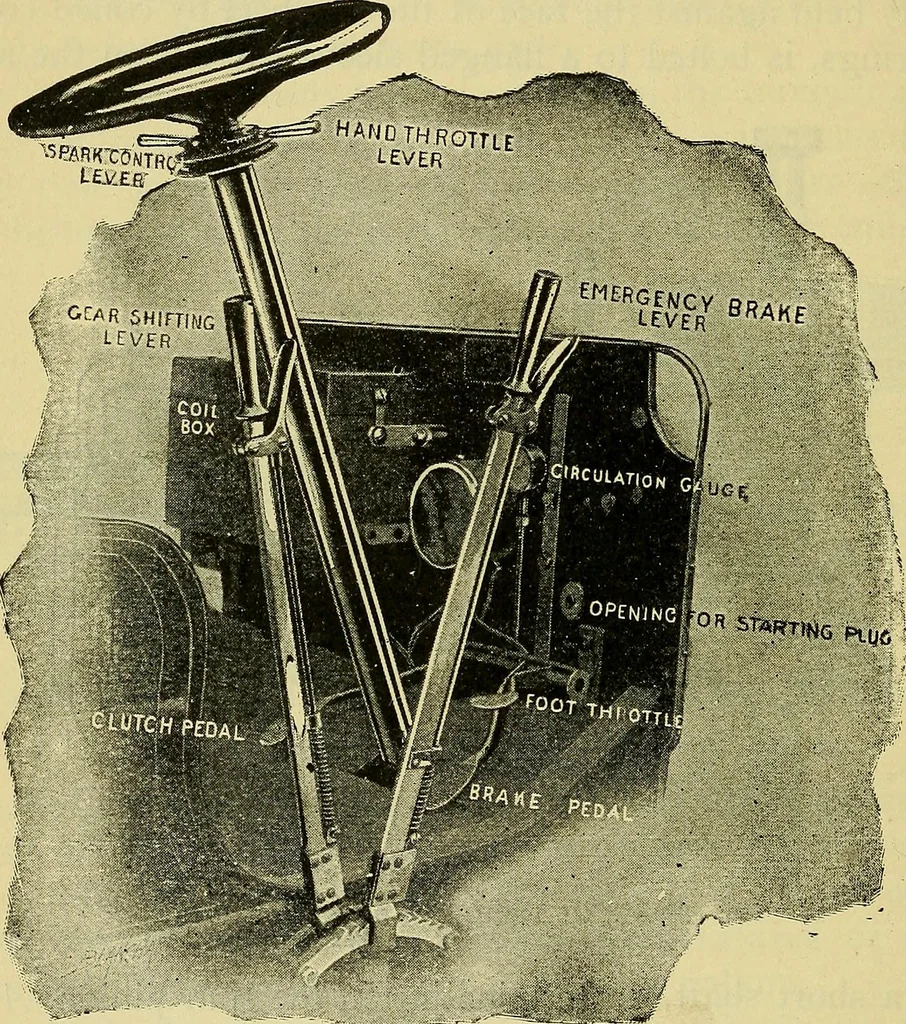

bearings, and carries the slid-ing pinions, E and F. Since its rotation is independent of the 380 SBLF-PROPBLLED VEHICLES. clutch sleeve, i, it follows that all movements except the highspeed forward, must be transmitted from the secondary shaft, 2,through the pinions, E and F, and since these may… … Fig. 290.—Control Levers and Appliances of the Riker Car. and the reverse, when F engages idler, K, which is driven fromthe secondary shaft through pinion, /. For the high speed for-ward, E is slid to the right until internal teeth in its face engagethe external teeth on A, thus locking the two and…
