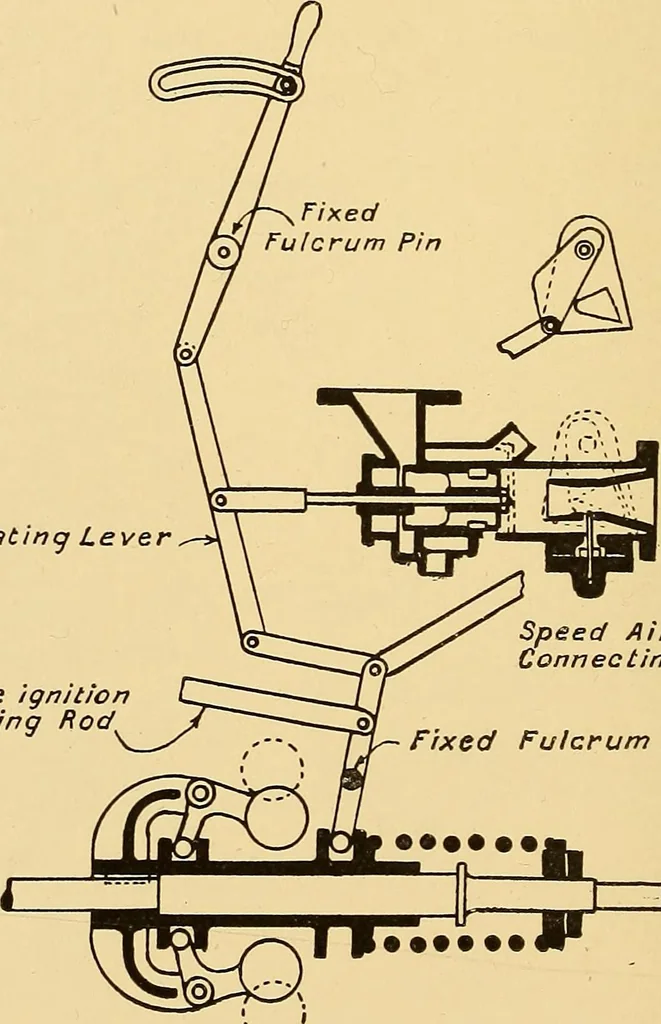

eces- 254 THE INTERNAL COMBUSTION ENGINE sary, as paraffin does not vaporize nearly so easily as petrol.The general form of float and jet is, however, the same. 115. The carburettor is usually controlled by the governoractuating a throttle, although sometimes it is the lift of theexhaust valves… … Floating Lever Advance ignitionConnecting Rod Speed Air PortConnecting Rod Fixed Fulcrum Pin iPif •••• ••Mm !•••••• Mr Fig. 87.—Arrangement of Murray Governor and Automatic Carburettor. fitted to any car and far more than most. It controls thethrottle, the ignition and the extra air port. By…
