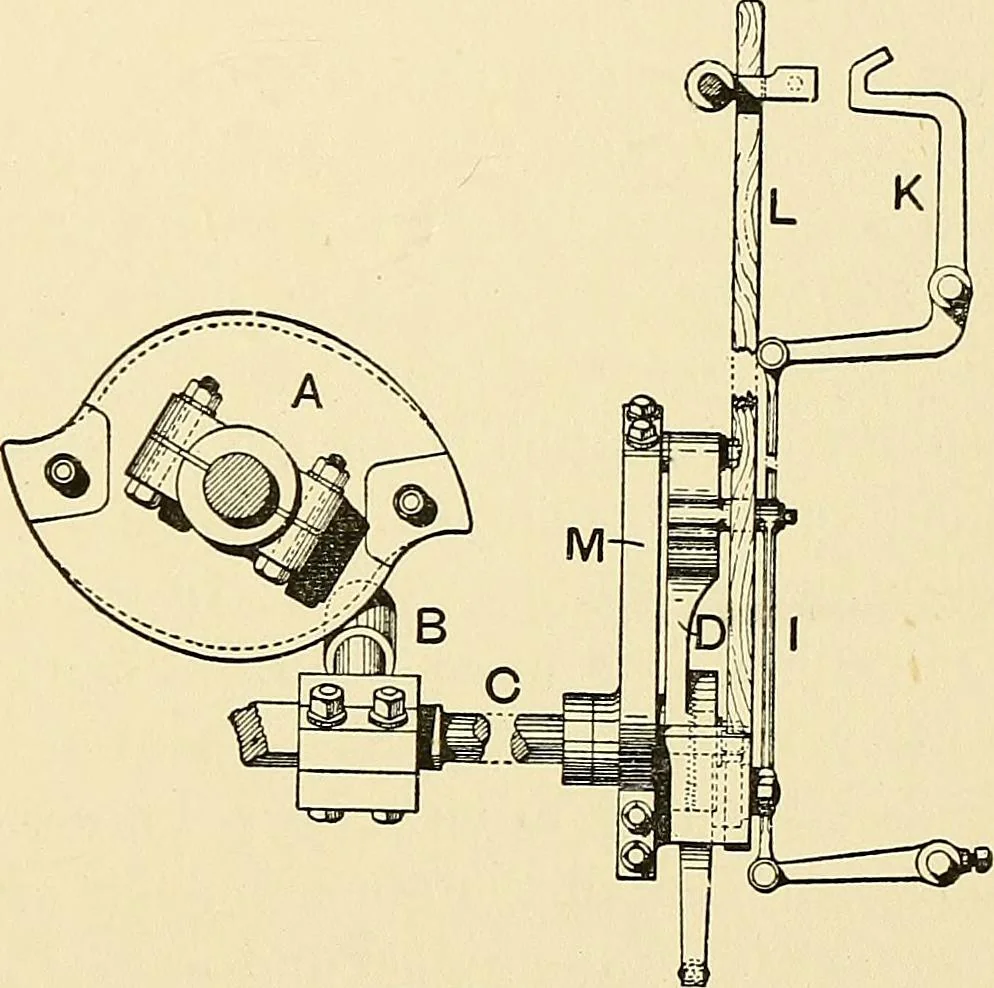

the bottom of theshuttle box, and acts uponthe picker. On other looms the lever,which may be called thepicking arm, is threadedthrough a spindle parallelwith the shuttle box, witha picking point fixed uponit. To the lower arm of the three-armed lever, round the head of which the strap is pinned,… … Fig. 323. End Elevation-Under Pick Motion for Power Loom A, Double-nosed picking cam. B, Cone. c, Horizontal rockingshaft actuated by the cone. d, An arm, terminating in a stop d,set on the rocking shaft at right angles to B. E, A second armloosely mounted on c, carrying a short lever or catch, F,…
