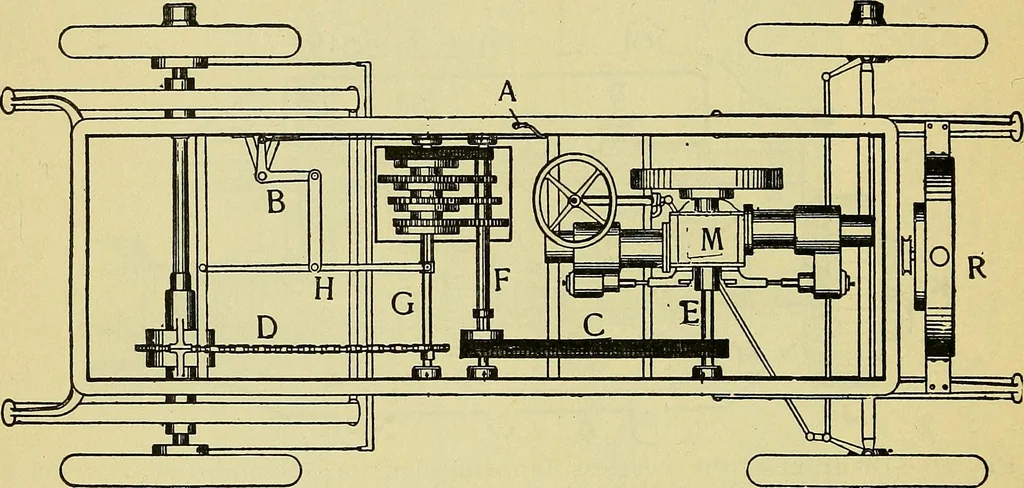

bybevels direct to the differential drum on the rear axle, the trans-mission gear being hung midway on the frame. As in standardmakes of car, there are two brakes, both of the clamping or con-stricting band type; the first on a drum to> the rear of the trans-mission case, operated by a foot… … flp Fig. 299.—Plan Sketch of Chassis of the Haynes-Apperson Tonneau Car. Aspeed-shifting lever; B, bell crank for shifting speeds; C, silent chainbetween the main shaft and the speed shaft; D, driving chain betweensprockets on clutch shaft and rear axle; E, main shaft of motor; F,speed gear shaft;…
