Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 427

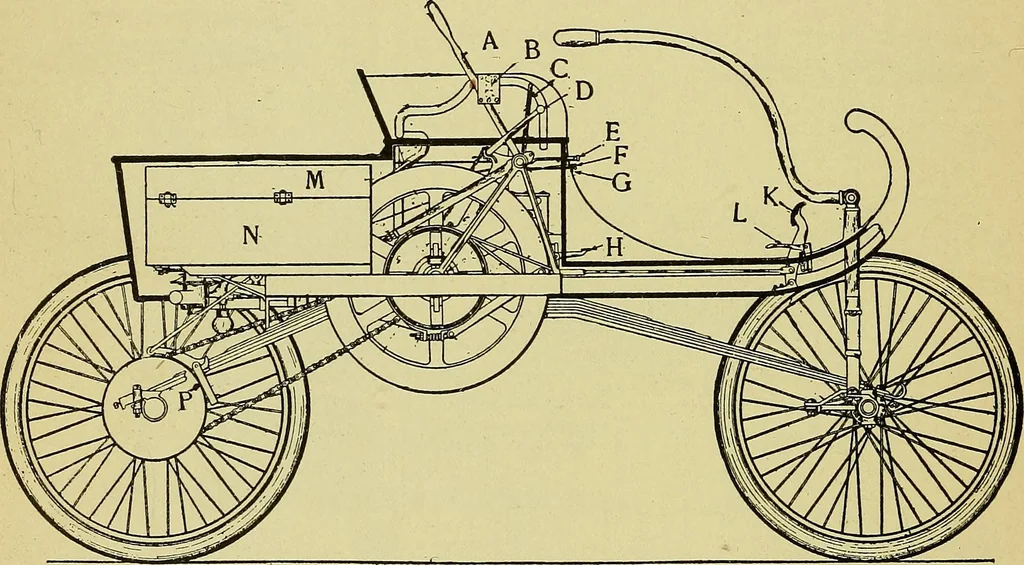

m the main shaft, through the two-speed planetary gear. Thisapparatus consists of two band-clutch drums, internally geared;actuating planetary pinions; one giving low speed, the other thereverse movement. The high speed is obtained by throwing ina sliding bevel friction clutch at the end of the… … Fig. 319.—Sectional Elevation of the Oldsmobile Runabout. A, the speedshifting and reversing lever; B, the battery switch; C, the spark-con-trolling- lever; D, the starting crank; E, starting handle; P, oiler handle;G, needle valve; H, relief lever; K, brake foot lever; L, speeder footlever; M,…
Automobiles
