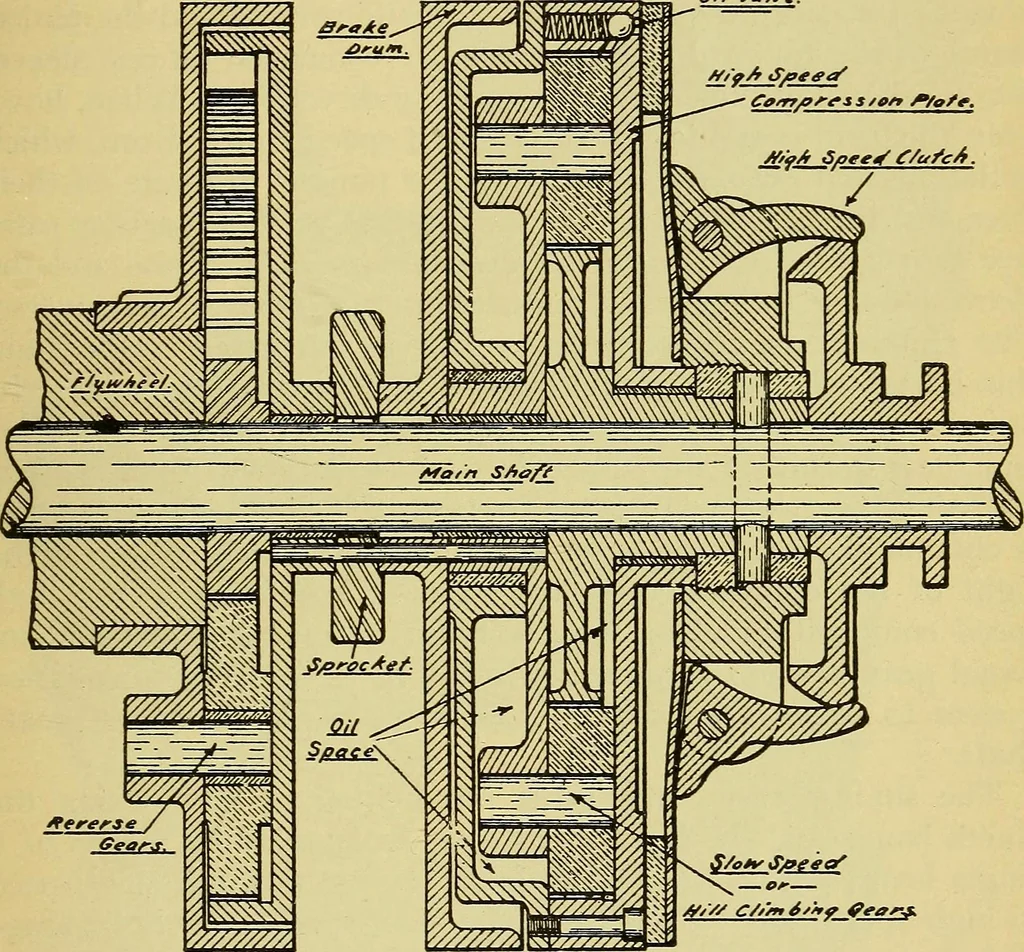

ull of 4,000 pounds. TYPICAL GASOLINE CARRIAGES. 415 The Oldsmobile Transmission.—The two-speed and reversetransmission of the Oldsmobile is of the planetary gear type. Thereverse and low speed forward are operated by band and drumclutches, and the high speed forward by a friction… … WMffli Fig. 320.—Section of Oldsmobile Two-Speed and Reverse Transmission. through a bell crank moving in a direction longitudinal to themain shaft. As shown in the sectional diagram, two spur gearsare keyed to the main shaft. Each of these gears meshes withplanetary pinions studded to a frame or…
