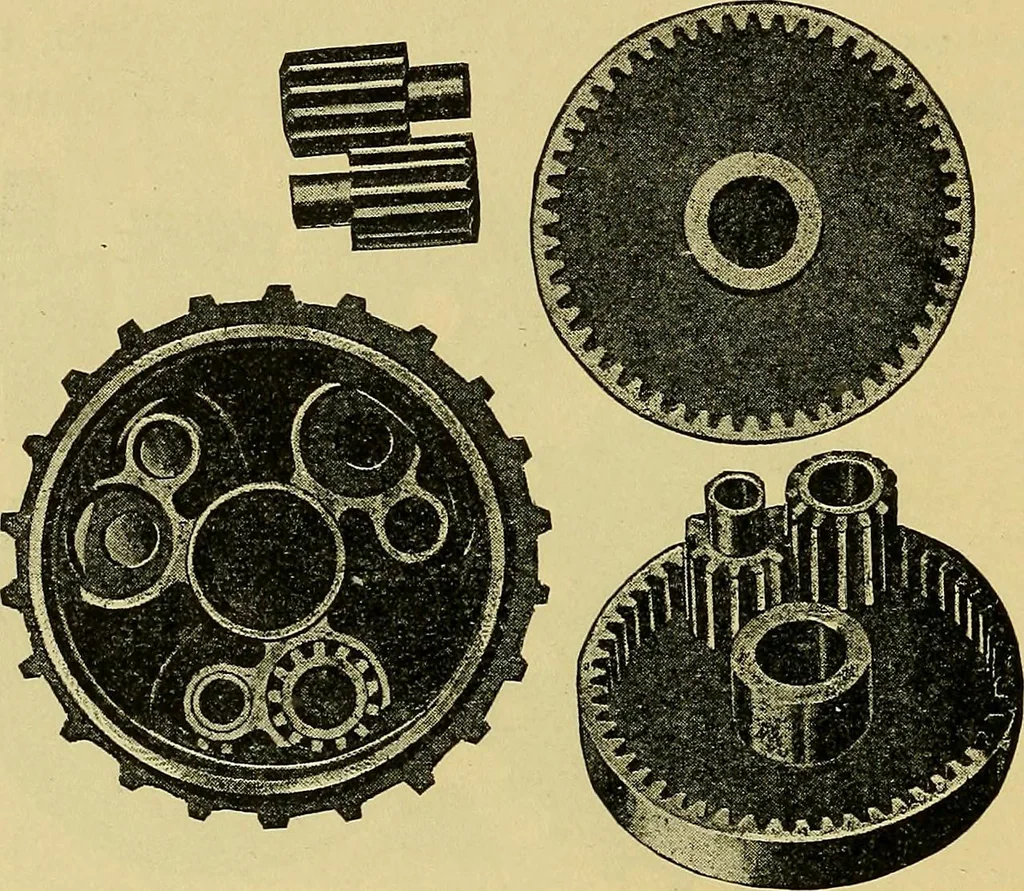

ean vehicles, and wasformerly patented in the United States, is shown in the accom-panying figure. In this, as in other forms of differential gearing, 30 SELF-PROPELLED VEHICLES. the axle shaft is divided at the centre, but instead of rigidly at-tached gears, carries a universal joint on each inner… … Fig. 27.—Another form of Spur Balance Gear. The action is the same as in Fig. 26, ex-cept that the inner ends of the divided axle carry internal gear wheels, each of whichmeshes with one pinion of each pair. box the two ends of the wheel axle shafts are arranged in bear-ings at an angle of about…
