Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 437

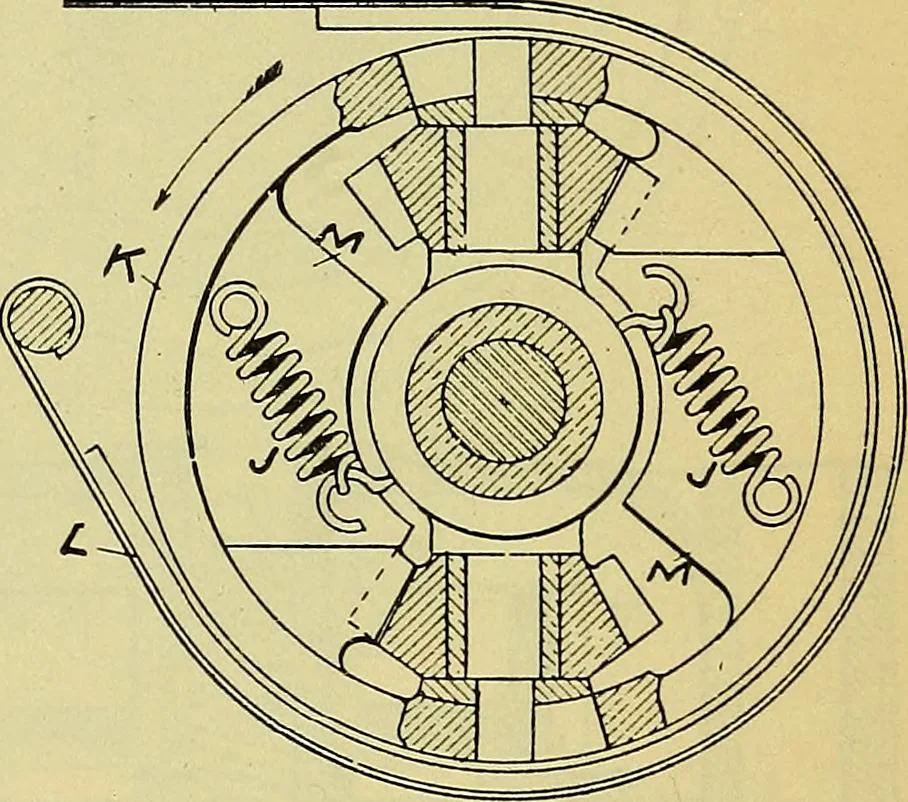

Fig. 325c. . Fig 325d. Figs. 325c, 325d.—De Dion & Bouton Reversing- Gear. pinion for driving direct to the differential gear, and having abevel gear at one end engaging the bevel pinions, C and D; B, abevel gear keyed to A at F; G, a nut holding E in place. H is asleeve on A, on which gear, B,…
Automobiles
