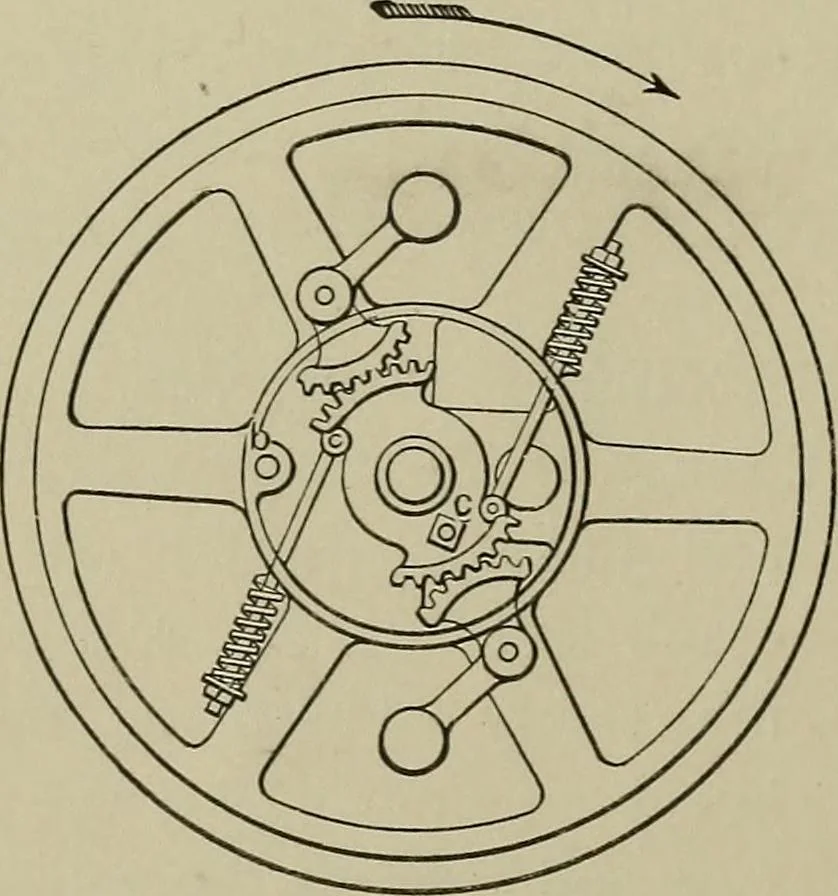

for stopping or reversing en-gines. A slotted sleeve slidingon the shaft with wedge-shapedwings that pass through cor-responding slots in the eccen-tric, move the eccentric to thecenter and reverse by the longi-tudinal movement of the sleeveand wings. The yoke lever andslotted collar control the… … 214. SECTOR GEAR GOV-ERNOR. Two balls on bell-cranksectors with their teeth meshing in acentral double sector, to which is at-tached the compression springs, whichare adjusted to the proper set of theeccentric, b and c are the pivot con-nections with the eccentric. 215. DASHPOT GOVERNOR. The…
